(35.850.07) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW, LIFT AND FOLD

Запчасти Case IH 1250 (35.850.07) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW, LIFT AND FOLD (35) - HYDRAULIC SYSTEMS

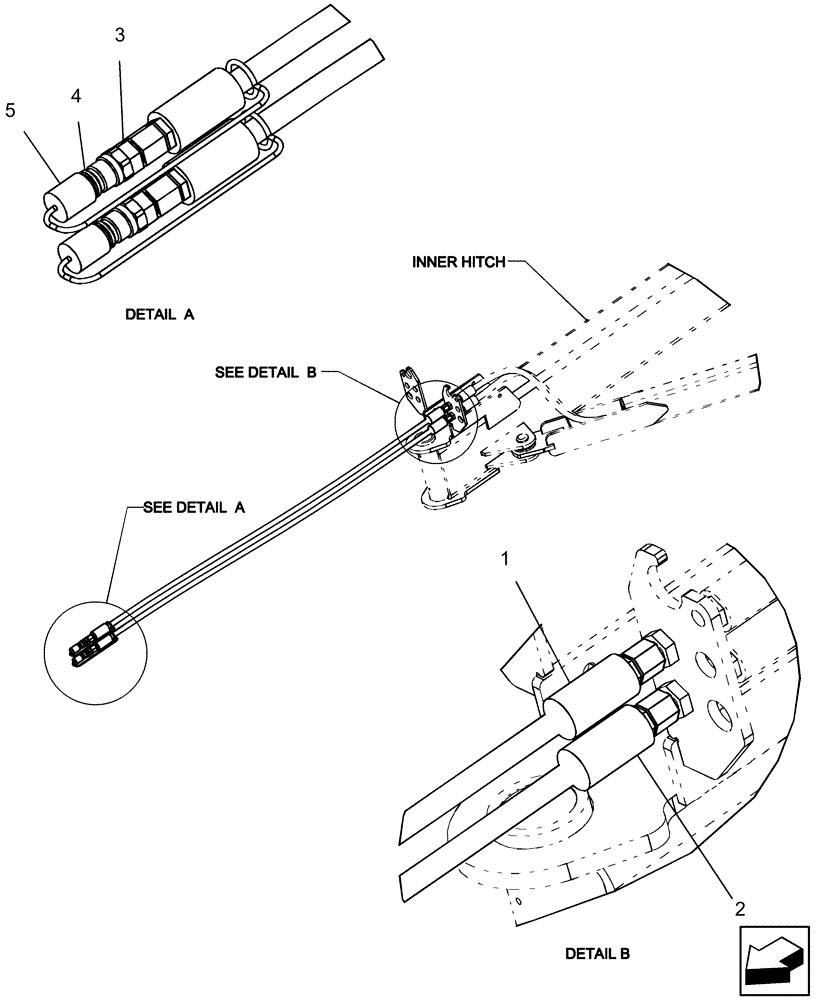

Схема запчастей Case IH 1250 - (35.850.07) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW, LIFT AND FOLD (35) - HYDRAULIC SYSTEMS
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87454315

HYDRAULIC HOSE,16mm ID x 2230mm L, SAE 100R17

5/8" x 88" fl

1шт.

2

87454315

HYDRAULIC HOSE,16mm ID x 2230mm L, SAE 100R17

5/8" x 88" fl

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

4

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

5

333721A1

CAP

female quick coupler red

2шт.

Выбрано товаров: 5
