Запчасти Case IH 1250 (35.850.05) - HYDRAULICS - TRACTOR HOSES, DRAWBAR HITCH, 16 ROW BULK FILL (35) - HYDRAULIC SYSTEMS

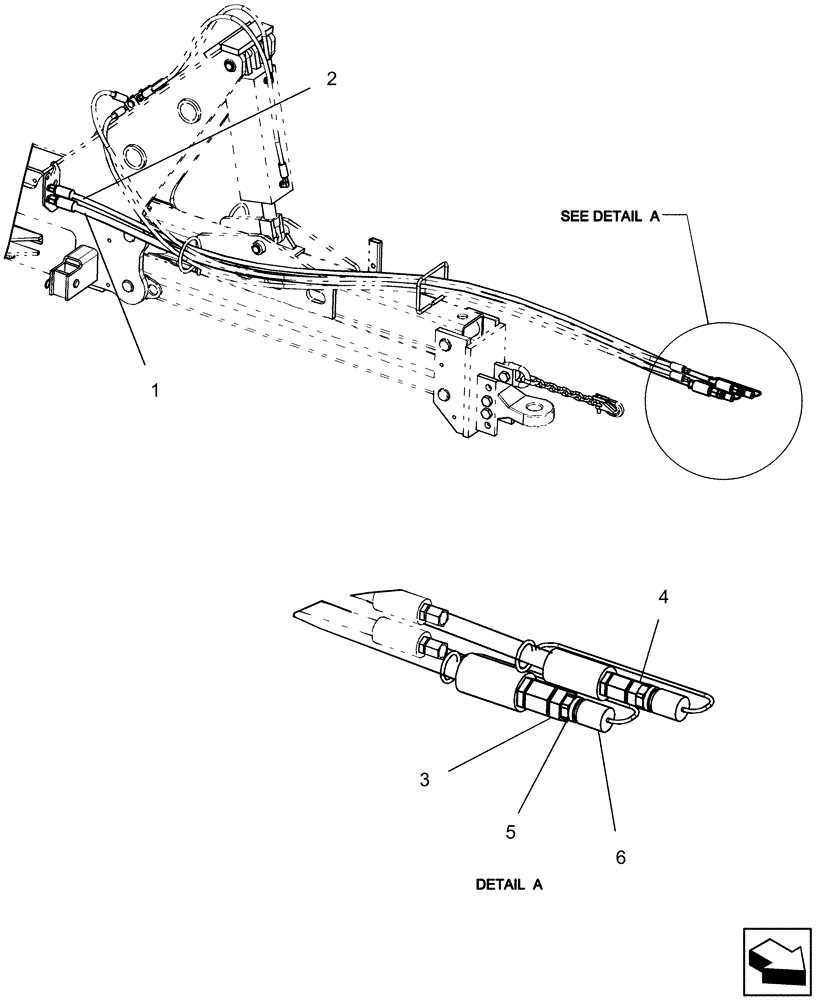

Схема запчастей Case IH 1250 - (35.850.05) - HYDRAULICS - TRACTOR HOSES, DRAWBAR HITCH, 16 ROW BULK FILL (35) - HYDRAULIC SYSTEMS
4
6
3
2
1
5

Артикул

Название

Примечание

Количество

1

87448577

HYDRAULIC HOSE,19mm ID x 3100mm L, SAE 100R17

3/4" x 122" fl

1шт.

2

87488337

HYDRAULIC HOSE,16mm ID x 3200mm L, SAE 100R17

16 mm x 3200 mm fl

1шт.

3

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

5

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

6

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

Выбрано товаров: 6
