(35.850.03) - HYDRAULICS - TRACTOR HOSE, CASE DRAIN, 12 ROW AND 16 ROW, 2-POINT HITCH

Запчасти Case IH 1250 (35.850.03) - HYDRAULICS - TRACTOR HOSE, CASE DRAIN, 12 ROW AND 16 ROW, 2-POINT HITCH (35) - HYDRAULIC SYSTEMS

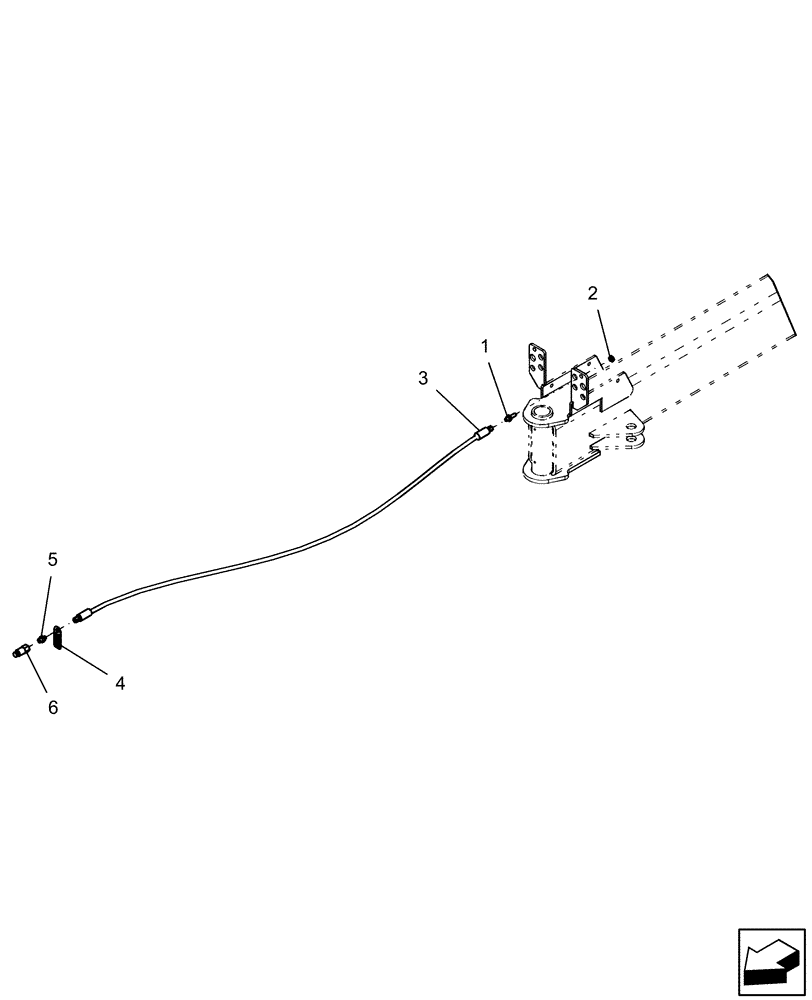

Схема запчастей Case IH 1250 - (35.850.03) - HYDRAULICS - TRACTOR HOSE, CASE DRAIN, 12 ROW AND 16 ROW, 2-POINT HITCH (35) - HYDRAULIC SYSTEMS
5
4
3
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

2

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.

3

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

4

86984798

TAG

warning, case drain

1шт.

5

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

6

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.
