Запчасти Case IH 1250 (35.850.01) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW, VACUUM FAN (35) - HYDRAULIC SYSTEMS

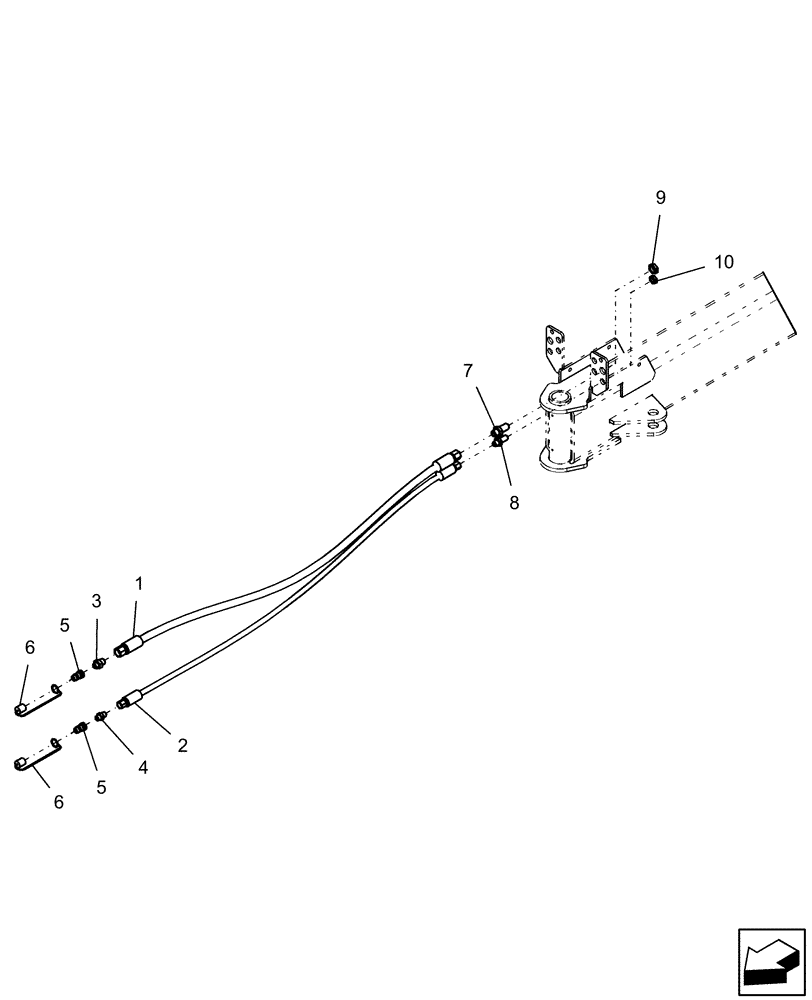

Схема запчастей Case IH 1250 - (35.850.01) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW, VACUUM FAN (35) - HYDRAULIC SYSTEMS
8
4
9
6
10
3
1
6
5
2
5
7

Артикул

Название

Примечание

Количество

1

301277A1

HYDRAULIC HOSE,19.05mm ID x 2540mm L

3/4" x 90" fl

1шт.

2

87454315

HYDRAULIC HOSE,16mm ID x 2230mm L, SAE 100R17

5/8" x 88" fl

1шт.

3

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

5

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

6

333722A1

CAP

female quick coupler green

2шт.

7

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

8

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

9

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

10

595460

BHD LOCK NUT,7/8" - 14

1шт.

Выбрано товаров: 10
