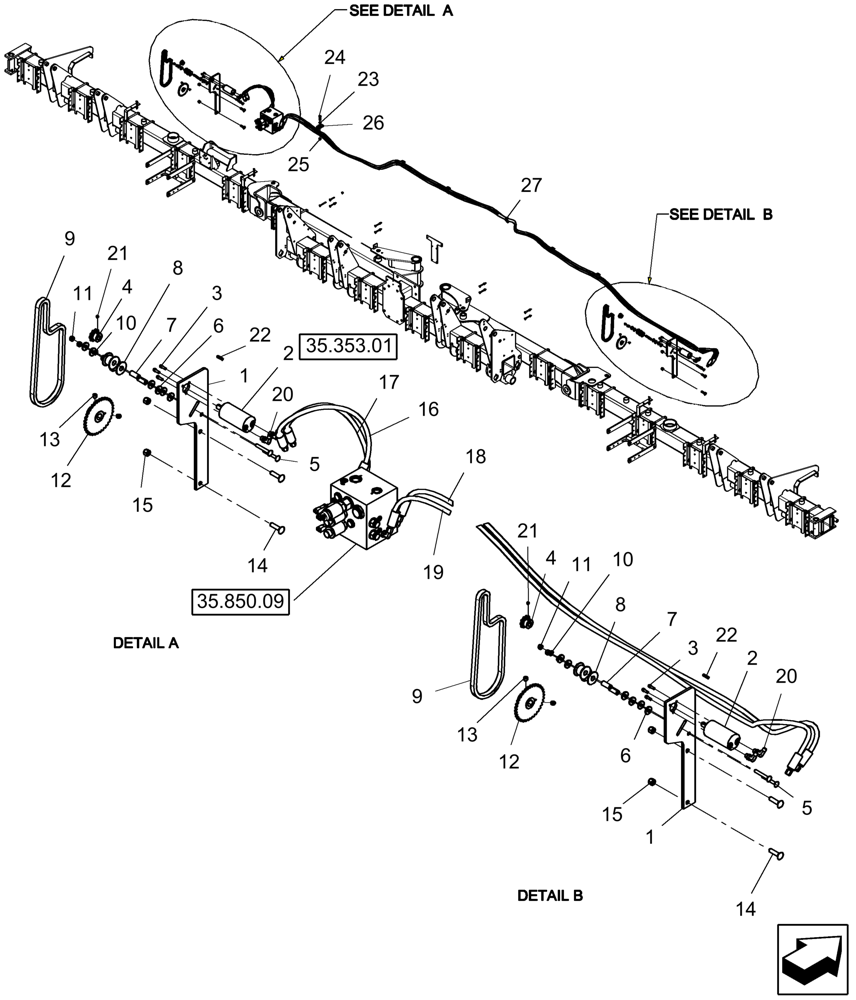

Запчасти Case IH 1250 (35.770.01[02]) - HYDRAULICS - SEED DRIVE - 12 ROW AND 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

436716A2

BRACKET

motor

2шт.

2

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

2шт.

293288A1R

REMAN-HYD MOTOR

1250 16 Row Frnt. Fold Trling Planter, ASN Y9S007001

2шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

4

232893A1

SPROCKET

40 x 10

2шт.

5

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

6

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

7

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

4шт.

8

1277726C1

ROLLER,48mm OD x 34mm L

idler

4шт.

9

436984A1

CHAIN (AG)

roller, 40-1, 84 links with 1 connector link, Model Year 2011 And Prior

2шт.

9

84387534

CHAIN

40-Standard, 84 links with 1 connector, Model Year 2012

2шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

11

9628503

NUT,3/8"-16, G5

4шт.

12

353037A1

SPROCKET

34 tooth

2шт.

13

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

14

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

15

86992215

LOCK NUT,1/2"-13, GC

4шт.

16

1336840C1

HYDRAULIC HOSE

3/8" x 25" fl

1шт.

17

1336840C1

HYDRAULIC HOSE

3/8" x 25" fl

1шт.

18

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

19

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

8шт.

23

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

21

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

2шт.

24

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

86632575

KEY

3/16" Sq x 11/16" Par

2шт.

25

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

26

87482623

CLAMP

agriculture large

5шт.

27

22510700

HOSE CLAMP,15.86mm

cushioned

1шт.
