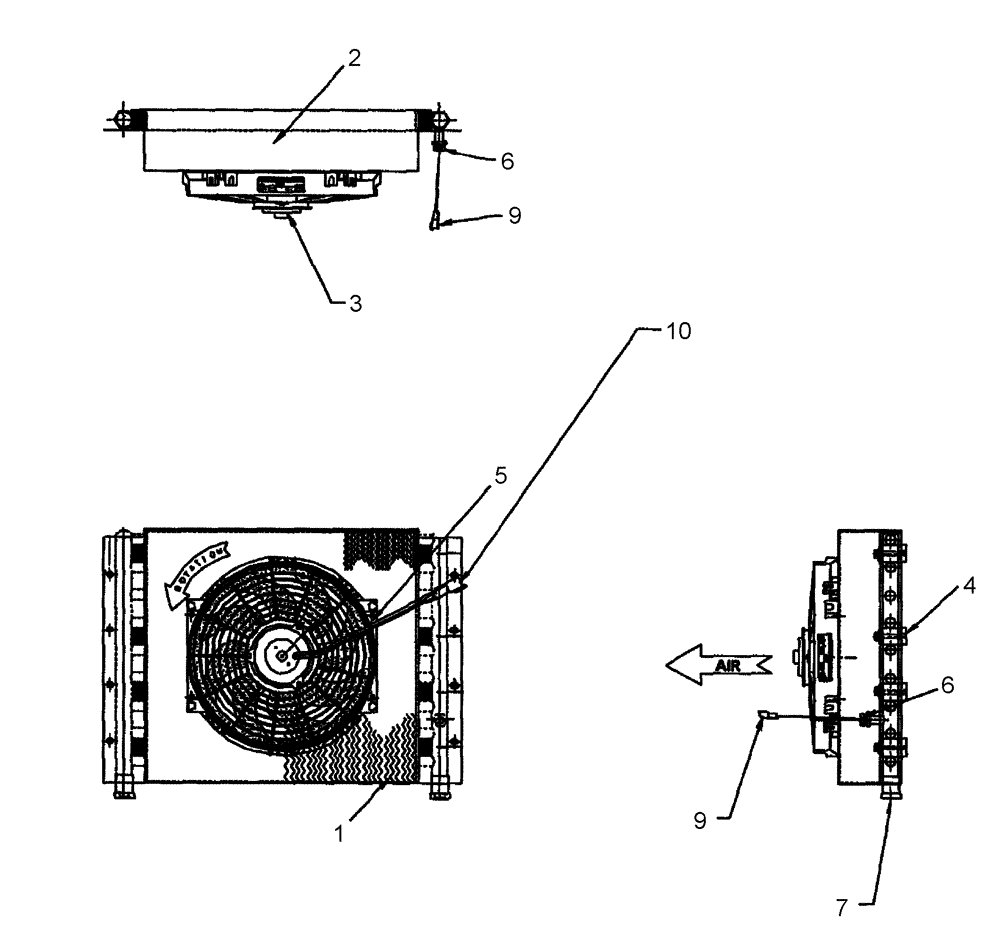

Запчасти Case IH 1250 (35.752.04) - HYDRAULICS - OIL COOLER 409312A1 (35) - HYDRAULIC SYSTEMS

0

409312A1

OIL COOLER

2 pass with electric fan

1шт.

1

84214912

CORE-OIL COOLER

1шт.

2

87437481

FAN

assembly, oil cooler

1шт.

3

NS

NOT SERVICED

Bracket

2шт.

4

87502292

SWITCH

160º temperature

1шт.

5

NS

NOT SERVICED

Bracket "U"

4шт.

6

NS

NOT SERVICED

Nut

4шт.

7

NS

NOT SERVICED

BOLT

4шт.

8

NS

NOT SERVICED

WASHER, LOCK

4шт.

9

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

4шт.

Not Shown

1шт.

10

NS

NOT SERVICED

Washer, Flat

4шт.

Not Shown

1шт.

11

NS

NOT SERVICED

WASHER, LOCK

4шт.

Not Shown

1шт.

12

NS

NOT SERVICED

Nut, TEE

4шт.

Not Shown

1шт.

13

396980A1

PLUG

rubber, oil cooler

4шт.

Not Shown

1шт.

14

NS

NOT SERVICED

CONNECTOR Deutsch

1шт.

15

NS

NOT SERVICED

CONNECTOR 2 pin

1шт.

16

NS

NOT SERVICED

MOTOR, 12V DC

1шт.
