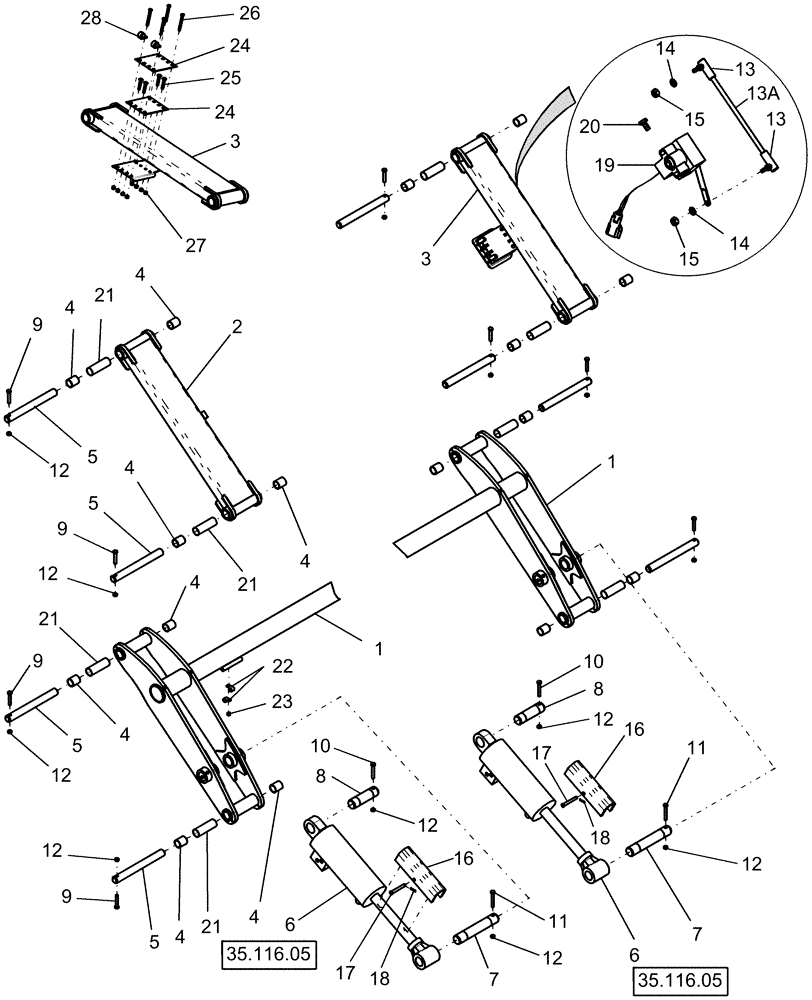

Запчасти Case IH 1240 (39.105.02) - FRAME - SUBBAR LIFT LINKAGE 12/23 ROW & 16/31 ROW (39) - FRAMES AND BALLASTING

1

87436504

LOWER LINK

assembly, sub bar with decals

1шт.

1

87462248

DECAL

small crush hazard

1шт.

1

87527145

WARNING DECAL

Crush Hazard Cylinder French

1шт.

2

87413931

UPPER LINK

heavy lift

1шт.

1

87549764

DECAL

SMALL WARNING CRUSH HAZARD CYLINDER French

1шт.

3

87413933

UPPER LINK

heavy right

1шт.

4

87414354

BUSHING

Garmax 1 3/4" x 1 1/2" x 2" lg

16шт.

5

87449533

LARGE PIN

PIN, LARGE lift linkage hard

8шт.

6

87463263

HYDRAULIC CYLINDER

5 1/2" x 12"

2шт.

6

84227100R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES (7/08-), Reman for New PN 87463263

2шт.

6

84227100C

CORE-HYD CYLINDER

Return Number

2шт.

7

87434205

PIN

heavy lift head, Years: -01-DEC-09

2шт.

6

84227100

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 304.8mm Stroke

5 1/2" x 12", Start Year: 01-DEC-09

2шт.

6

84227100R

REMAN-HYD CYLINDER

A1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, 12/23 ROW & 16/31 ROW (7/08-)

2шт.

6

84227100C

CORE-HYD CYLINDER

Return Number

2шт.

8

87449858

PIN

heavy lift base

2шт.

9

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

8шт.

10

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

11

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

12

86632537

THIN NUT,1/2"-13, GB, Thin

12шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

socket .346"

2шт.

13

301522A1

THREADED TIE-ROD

assembly potentiometer contr

1шт.

Includes Ref. 15

1шт.

13a

127474A1

STUD

pot. control 1/4"-28 x 6"

1шт.

14

80682

LOCK WASHER,1/4"

2шт.

15

86509309

NUT,1/4"-28, G5

2шт.

16

427719A1

CHANNEL

cylinder lock

2шт.

17

439-1864

HEADED PIN,12.7mm OD x 101.6mm L

2шт.

Use pin 439-1864 if 427719A1 is made from 1/2" material

1шт.

17

87023160

HEADED PIN,3/8" x 3 1/2"

2шт.

Use pin 87023160 if 427719A1 is made from 3/8" material

1шт.

18

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

19

404202A1

SENSOR

rotary position

1шт.

20

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

21

87401421

SPACER

1 3/4" od

8шт.

22

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

1шт.

24

87422462

PLATE

hose holder

2шт.

25

280514

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

4шт.

26

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

27

88902

NUT,3/8"-16

8шт.

28

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.
