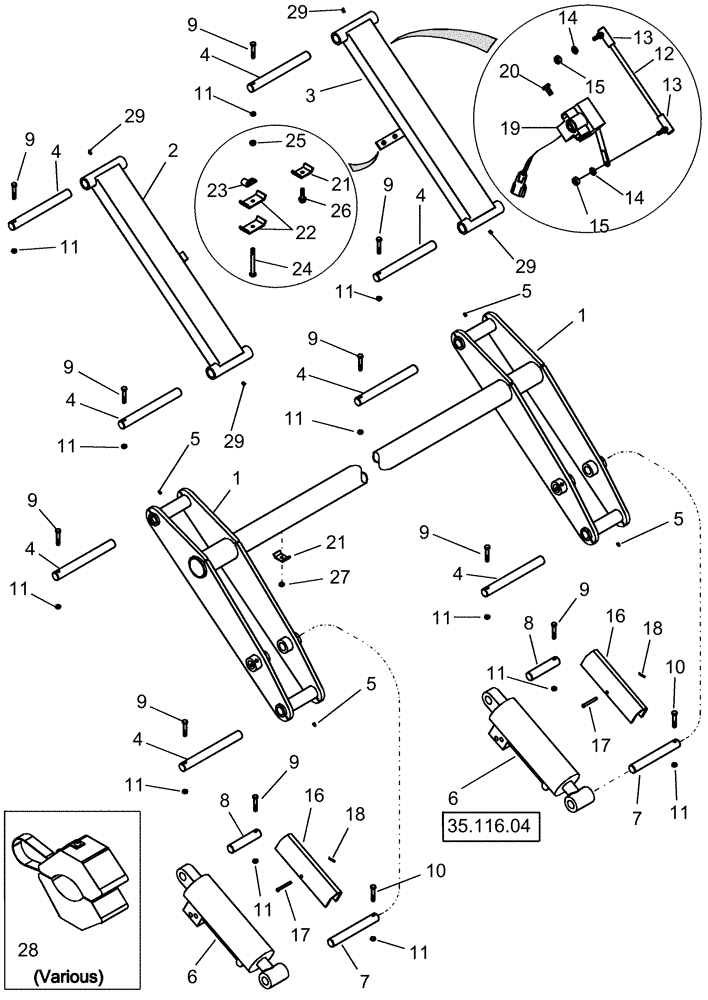

Запчасти Case IH 1240 (39.105.01) - FRAME - TOOLBAR LIFT LINKAGE - 12 ROW & 16 ROW (39) - FRAMES AND BALLASTING

1

87414365

TUBE

lower lift with decals

1шт.

Includes 413671A1

1шт.

1

87462248

DECAL

small crush hazard

3шт.

Part of Lower Lift Tube P/N 87414365

1шт.

1

87527145

WARNING DECAL

Crush Hazard Cylinder French

1шт.

1

87549764

DECAL

SMALL WARNING CRUSH HAZARD CYLINDER French

1шт.

2

427715A1

TUBE

upper lift

1шт.

3

427717A1

TUBE

upper lift

1шт.

4

341404A1

PIN

main linkage

8шт.

5

87414

LUBE NIPPLE,1/4" - 28

4шт.

6

87401121

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 304.8mm Stroke

5" x 12" 3000 PSI

2шт.

7

404282A1

PIN

cylinder 1 1/2"od x 11 3/8"lg

2шт.

8

341402A1

PIN

cylinder 1 1/2" x 7" fl hardened, c/w 1 hole

2шт.

9

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

10шт.

10

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

11

86632537

THIN NUT,1/2"-13, GB, Thin

12шт.

12

301522A1

THREADED TIE-ROD

assembly potentiometer contr

1шт.

Includes Ref. 15

1шт.

12

127474A1

STUD

pot. control 1/4"-28 x 6"

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

socket .346"

2шт.

14

80682

LOCK WASHER,1/4"

2шт.

15

86509309

NUT,1/4"-28, G5

2шт.

16

427719A1

CHANNEL

cylinder lock

2шт.

17

439-1864

HEADED PIN,12.7mm OD x 101.6mm L

2шт.

Use pin 439-1864 if 427719A1 is made from 1/2" material

1шт.

17

87023160

HEADED PIN,3/8" x 3 1/2"

2шт.

Use pin 87023160 if 427719A1 is made from 3/8" material

1шт.

18

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

19

404202A1

SENSOR

rotary position

1шт.

20

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

21

427779A1

CLAMP

2 hose

2шт.

22

427781A1

HOSE CLAMP

2 hose

2шт.

23

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

24

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

25

9628503

NUT,3/8"-16, G5

1шт.

26

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

1шт.

27

280736

NUT,5/16"-18, GC

1шт.

28

350701A1

STOP

depth 1.44" blue

1шт.

28

350702A1

STOP

depth 1 1/4" green

1шт.

28

350703A1

STOP

depth 5/8" orange

1шт.

28

350704A1

STOP

depth 1/2" red

1шт.

28

350705A1

STOP

depth 1 1/2"

1шт.

28

350706A1

STOP

depth 3/4" yellow

1шт.

28

350746A1

STOP

depth 1 5/8" black

1шт.

28

350747A1

STOP

depth 1 1/8" black

1шт.

29

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

4шт.
