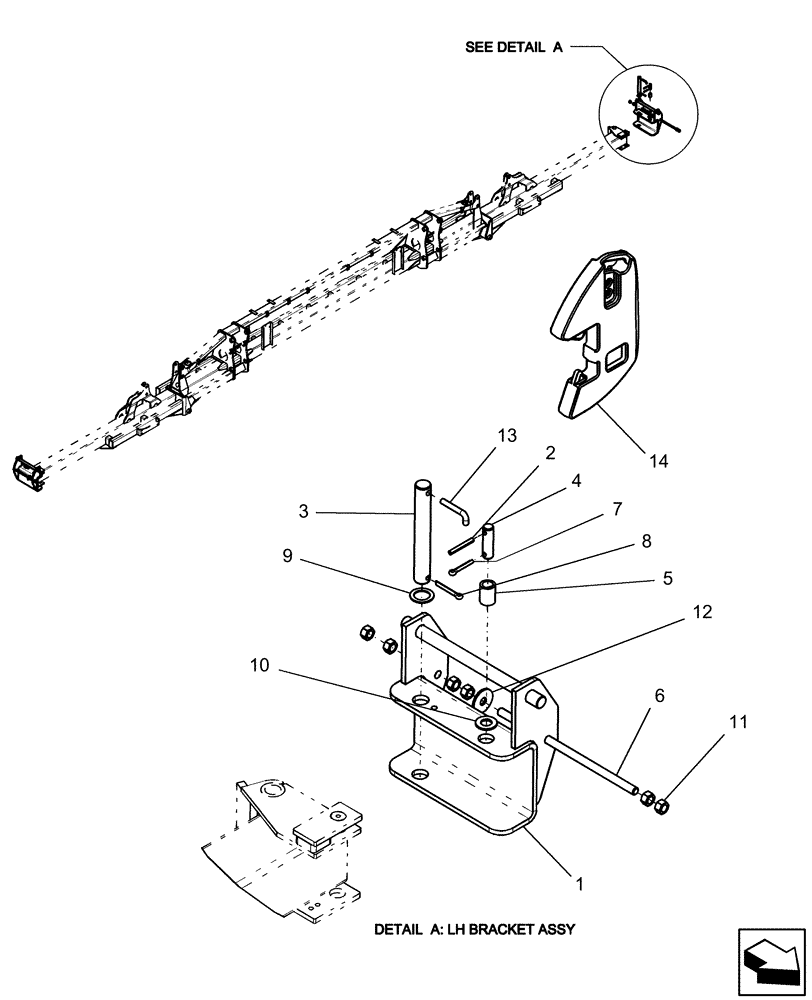

Запчасти Case IH 1240 (39.100.11) - NO MARKER WEIGHT BRACKET (39) - FRAMES AND BALLASTING

1

87614397

BRACKET

weight LH

1шт.

1

87614398

BRACKET

weight RH

1шт.

2

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

3

87608811

PIN

38 x 238 UL

1шт.

4

87608812

PIN

25.4 x 52.6 UL

1шт.

5

87608813

BUSHING

37.7 od x 25.8 id x 48.7 long

1шт.

6

87661329

THREADED ROD

19.1 x 460

1шт.

7

432-2432

COTTER PIN,3/8" x 2"

1шт.

8

87575

COTTER PIN,3/8" OD x 2.5" OAL

1шт.

9

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

1шт.

10

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

11

280954

NUT,3/4"-10, G5

6шт.

12

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

13

408033A1

PIN

J lock 1/2" x 3 3/8"

1шт.

14

405846A3

WEIGHT

45 kg (100 lb)

3шт.

12 row and 16 row planters

1шт.

14

405846A3

WEIGHT

45 kg (100 lb)

5шт.

12/23 row, 16/31 row and 24 row planters

1шт.
