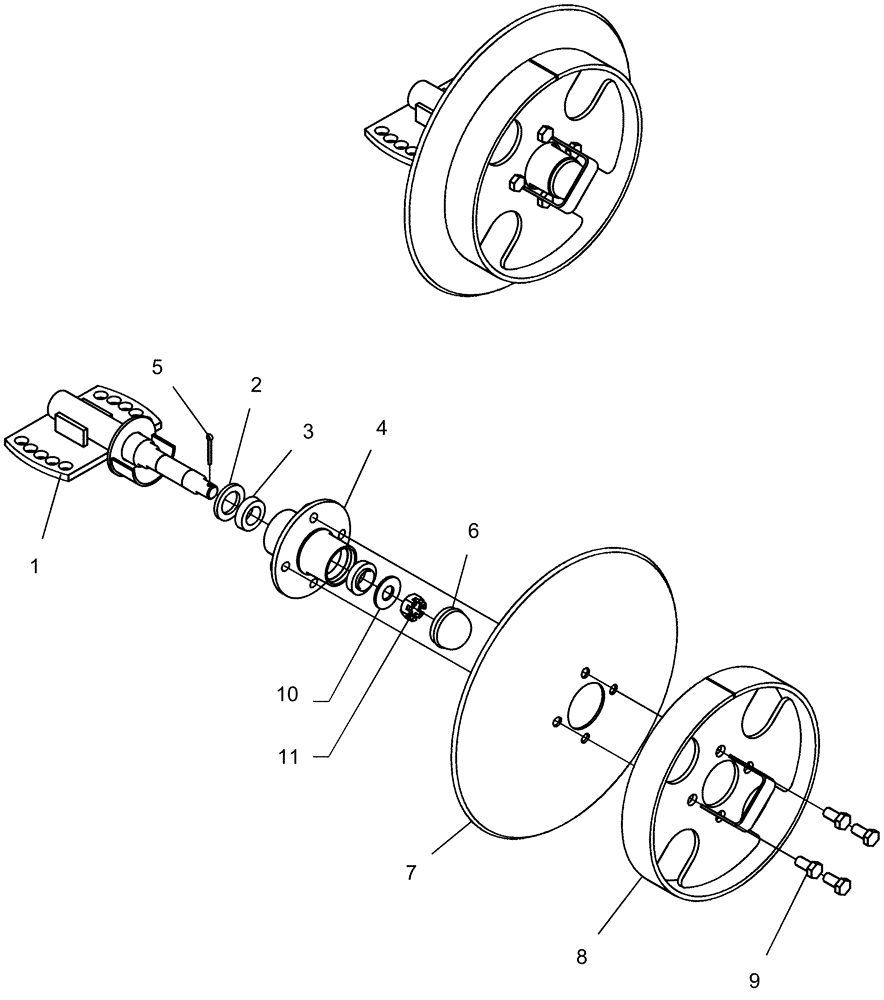

Запчасти Case IH 1240 (39.100.10[02]) - MARKER - DISK AND DEPTH BAND ASSEMBLY (ASN Y8S007001) (39) - FRAMES AND BALLASTING

1

87483942

SPINDLE

marker mount

1шт.

2

432625A1

OIL SEAL

SE10

1шт.

3

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

4

87412999

HUB

H211 assembly with cups and bolts

1шт.

5

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

6

9702386

DUST CAP

hub H211

1шт.

7

87557023

DISC

16" smooth marker

1шт.

8

87557028

RING

depth band

1шт.

9

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

4шт.

10

86012106

WASHER

spindle wa10 .75 id

1шт.

11

88886

SLOTTED NUT,3/4"-16

1шт.
