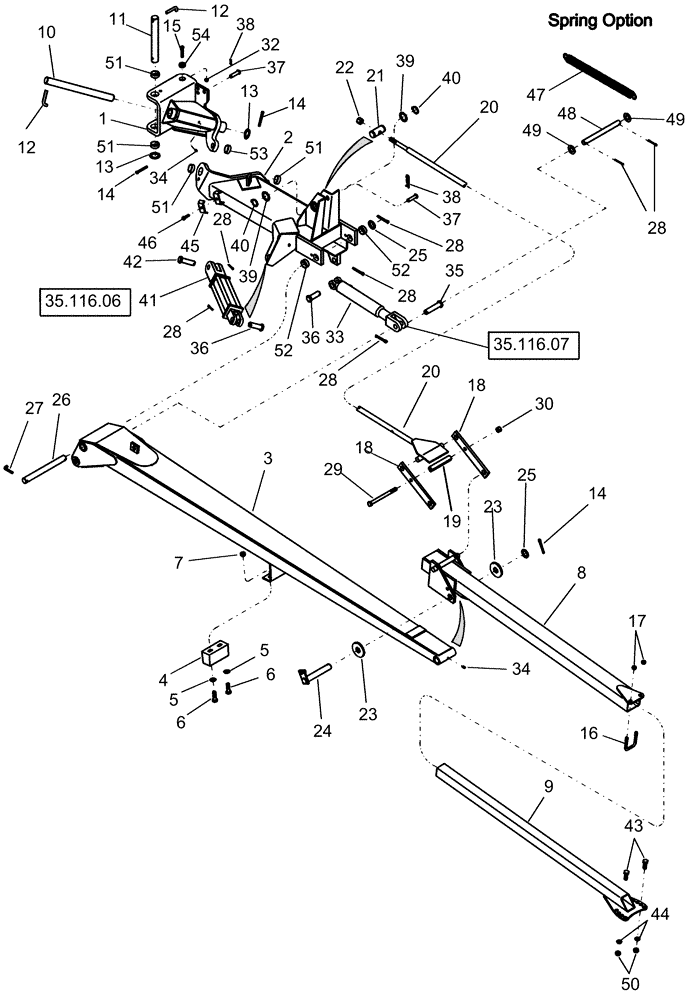

Запчасти Case IH 1240 (39.100.09) - ROW MARKER - FOLDING (39) - FRAMES AND BALLASTING

1

427807A2

BASE

30' RH wing pivot

1шт.

12 row planter

1шт.

1

427819A2

BASE

30' LH wing pivot

1шт.

12 row planter

1шт.

1

427791A2

BASE

40' RH wing pivot

1шт.

16 row planter

1шт.

1

427811A2

BASE

40' LH wing pivot

1шт.

16 row planter

1шт.

2

87460481

TUBE

wing with decals RH

1шт.

2

87460483

TUBE

wing with decals LH

1шт.

2

413670A1

WARNING DECAL

crush hazard

1шт.

2

87527144

WARNING DECAL

Crush Hazard French

1шт.

2

416611A1

DECAL

danger electrical electrocution hazard

1шт.

2

87527149

DECAL

danger electrical electrocution hazard French

1шт.

3

427809A1

ARM

marker 30' middle

1шт.

12 row planter

1шт.

3

427795A1

ARM

marker inside 16R

1шт.

24 row planter

1шт.

4

437020A1

BUMPER

rubber

1шт.

5

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

6

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

8

87414379

ARM

outer marker 30' with decals

1шт.

Includes decals 413670A1 and 414152A1

1шт.

12 row planter

1шт.

8

87414377

TUBE

outer arm with decals

1шт.

Includes decals 413670A1 and 414152A1

1шт.

16 row planter

1шт.

8

413670A1

WARNING DECAL

crush hazard

1шт.

8

87527144

WARNING DECAL

Crush Hazard French

1шт.

8

414152A1

WARNING DECAL

Misuse Hazard

1шт.

8

87527148

WARNING DECAL

Misuse Hazard French

1шт.

9

427799A1

TUBE

adjusting

1шт.

9

87417015

ARM

12/23 marker adjusting

1шт.

10

401441A1

PIVOT PIN

wing

1шт.

11

401442A1

PIVOT PIN

1 1/2" od x 12" fl

1шт.

12

408033A1

PIN

J lock 1/2" x 3 3/8"

2шт.

13

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.

14

87575

COTTER PIN,3/8" OD x 2.5" OAL

3шт.

15

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

12 row planter

1шт.

15

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

16 row planter

1шт.

16

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

17

280431

NUT,1/2"-13, G5

2шт.

18

427801A1

BAR

link

2шт.

19

427803A1

TUBE

spacer

1шт.

20

427817A1

ROD

30' link

1шт.

12 row planter

1шт.

20

427805A1

ROD

link

1шт.

16 row planter

1шт.

24 row planter

1шт.

21

406319A1

TRUNNION

marker

1шт.

22

86754

NUT,3/4"-10, GB

1шт.

23

406320A1

WASHER

link pivot

2шт.

24

427989A1

SPECIAL PIN

lock

1шт.

25

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

26

406321A1

PIVOT PIN

outer arm

1шт.

27

408034A1

PIN

J lock 3/8" x 2 3/4"

1шт.

28

88182

COTTER PIN,1/4" OD x 2" L

7шт.

29

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

30

86639566

NUT,5/8"-11, GB

1шт.

32

86050277

NUT,5/16"-18, GB

1шт.

12 row planter

1шт.

32

231-1446

NUT,3/8" - 16, Gr 5

1шт.

16 row planter

1шт.

33

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8"

2шт.

34

87414

LUBE NIPPLE,1/4" - 28

3шт.

35

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

2шт.

36

87023161

HEADED PIN,1" x 3"

2шт.

37

86632562

HEADED PIN,5/8" x 2", G2

2шт.

38

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

39

86632585

WASHER,1.53" ID x 2.25" OD x 0.06" Thk

2шт.

40

86632531

SNAP RING,#150, Ext

2шт.

41

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

1шт.

42

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

43

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

44

12034871

WASHER

5/8"

2шт.

45

427781A1

HOSE CLAMP

2 hose

1шт.

46

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

1шт.

47

1277583C1

COIL SPRING

marker assist

1шт.

Spring option

1шт.

48

441257A1

PIN,25.4mm OD x 265mm L

outer marker

1шт.

Spring option

1шт.

49

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

Spring option

1шт.

50

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

51

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

4шт.

52

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

tension 1 1/2" x 1 1/4" x 3/4" lg

2шт.

53

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

1шт.

54

410980A1

BUSHING

1.5" od .323 id .75 lg, Use With 5/16" Bolt, 12 Row Planter

1шт.

54

401424A1

BUSHING,9.67mm ID x 37.96mm OD x 19.1mm L

1.5" od .385 id .75 lg, Use With 3/8" Bolt, 16 Row Planter

1шт.
