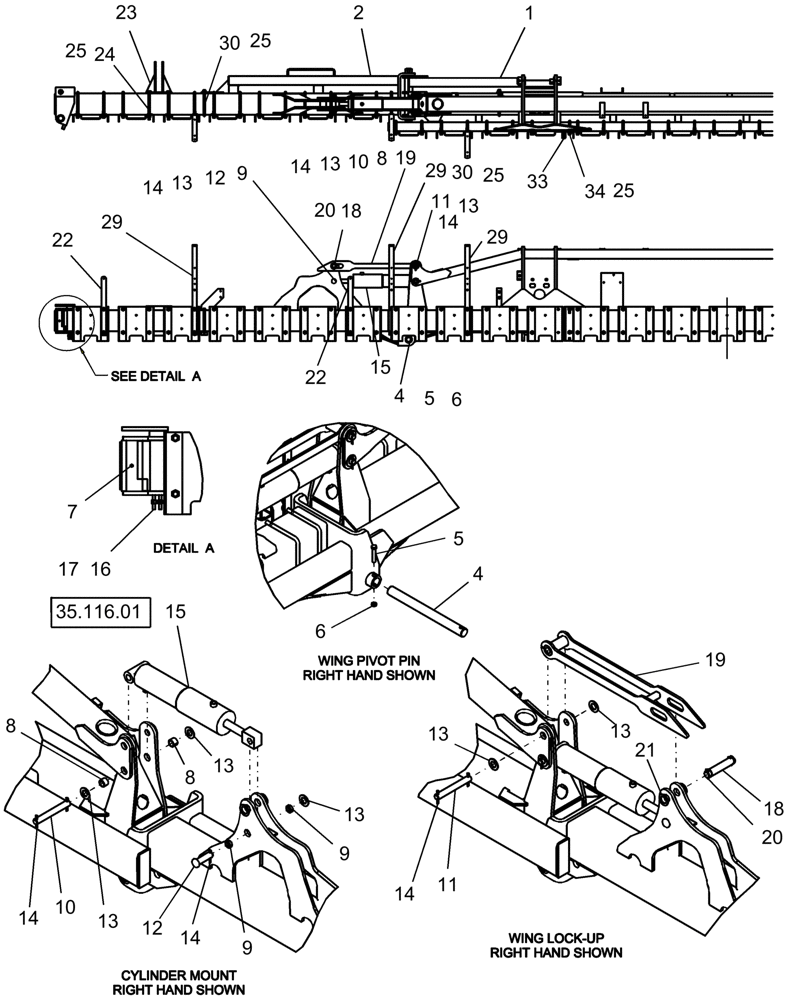

Запчасти Case IH 1240 (39.100.08) - FRAME - TOOLBAR 16/31 ROW & 24 ROW (39) - FRAMES AND BALLASTING

1

87460801

TUBE,5835 mm L

assembly, 31R15 center

1шт.

Includes decal 87462248

1шт.

16/31 row planter

1шт.

1

87462248

DECAL

small crush hazard

1шт.

1

87461693

TUBE

24R20 sub center with decals

1шт.

24 row planter

1шт.

2

87461706

TUBE

31R15 wing with decal LH

1шт.

16/31 row planter

1шт.

2

87460569

FRAME

24R20, wing, LH

1шт.

24 row planter

1шт.

3

87461708

TUBE

31R15 wing with decal RH

1шт.

16/31 row planter

1шт.

3

87460571

TUBE

wing, 24R20 RH

1шт.

24 row planter

1шт.

4

441197A1

PIVOT PIN

31R15

2шт.

16/31 row planter

1шт.

4

87401673

PIN

24R20 wing pivot

2шт.

24 row planter

1шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

16/31 row planter

1шт.

5

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

24 row planter

1шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

16/31 row planter

1шт.

6

87530607

NUT

1/2"-13, GB

2шт.

24 row planter

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

9

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

4шт.

10

87460740

PIN

25.4 mm x 163 mm ul

2шт.

11

441198A1

PIN

cylinder anchor

2шт.

16/31 row planter

1шт.

11

87458906

PIN

25.4 mm x 151 mm ul

2шт.

24 row planter

1шт.

12

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

10шт.

14

88182

COTTER PIN,1/4" OD x 2" L

10шт.

15

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA

2шт.

15

87439451R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, TOOLBAR 16/31 ROW & 24 ROW, wing 3 7/8" X 4 3/4" 3000 PSI SA (7/08-)

2шт.

15

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

16

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

16/31 row planter

1шт.

16

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

24 row planter

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16/31 row planter

1шт.

17

86050277

NUT,5/16"-18, GB

4шт.

24 row planter

1шт.

18

87458916

PIN

31.75 mm x 130.2 mm wing lock

2шт.

19

87456282

LATCH

wing lock

2шт.

20

87459046

LINCH PIN

4.76 mm x 39.69 mm

4шт.

21

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

22

87447161

BRACKET

hose routing

4шт.

23

427733A1

BRACKET

wheel mounting

1шт.

24

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

25

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

26

427733A1

BRACKET

wheel mounting

1шт.

27

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

28

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

29

427745A2

BAR

vacuum support

6шт.

30

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

31

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

32

141728C5

BRACKET

channel head

31шт.

33

87462142

ANGLE

row unit mounting

2шт.

34

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

34шт.

35

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

24шт.

36

280374

NUT,Hex, 5/8" - 11, Gr 5

116шт.
