(39.100.06) - FRAME - TOOLBAR 16 ROW

Запчасти Case IH 1240 (39.100.06) - FRAME - TOOLBAR 16 ROW (39) - FRAMES AND BALLASTING

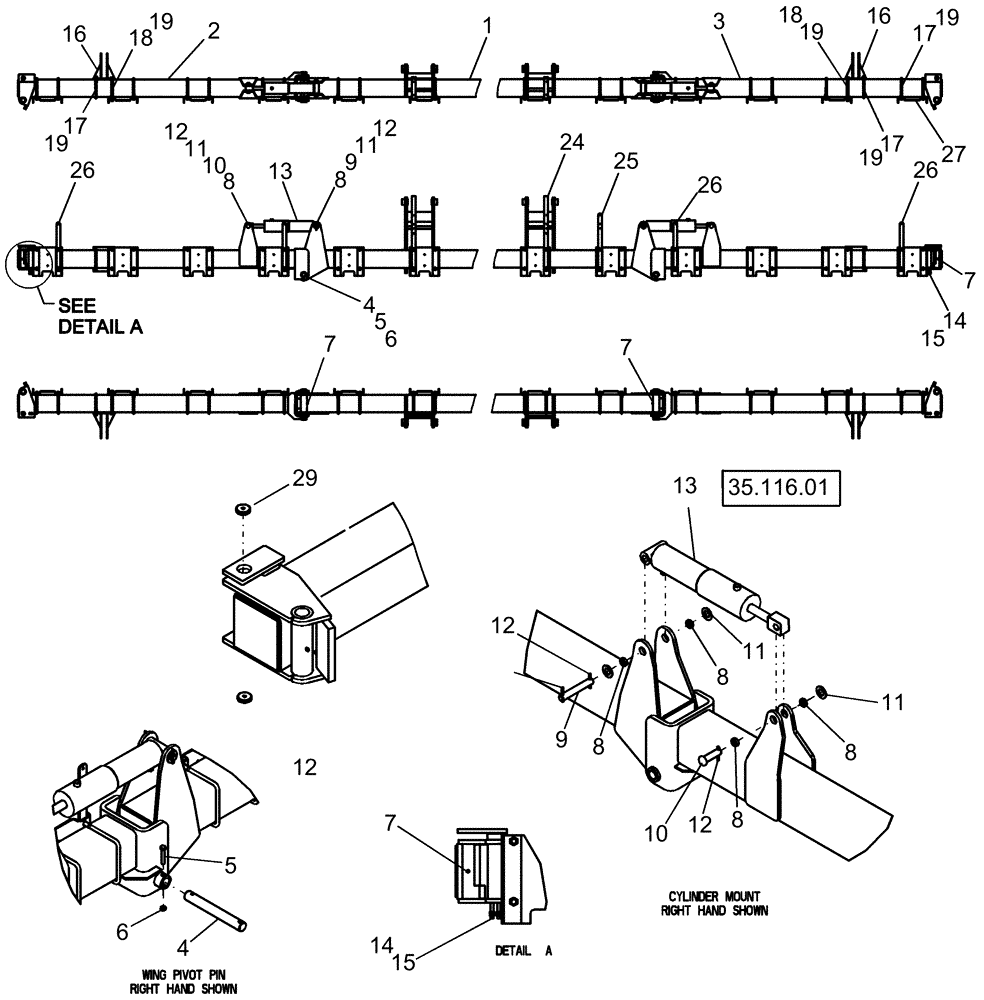

Схема запчастей Case IH 1240 - (39.100.06) - FRAME - TOOLBAR 16 ROW (39) - FRAMES AND BALLASTING
6
9
10
12
26
11
29
8
11
15
7
17
8
15
27
18
14
3
2
11
19
13
26
12
16
8
19
19
1
7
8
4
10
35.116.01
5
19
13
9
7
25
7
17
19
11
12
5
16
8
14
8
26
12
6
18
12
24
4
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87460961

TUBE,6249.6 mm L

assembly center 7 x 7

1шт.

2

87461698

TUBE

40' wing with decal LH

1шт.

3

87461700

TUBE

40' wing with decal RH

1шт.

4

401442A1

PIVOT PIN

1 1/2" od x 12" fl

1шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

8шт.

9

395611A1

PIN

cylinder anchor

2шт.

10

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

11

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

12

88182

COTTER PIN,1/4" OD x 2" L

2шт.

13

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA

2шт.

13

87439451R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, TOOLBAR 16 ROW, wing 3 7/8" X 4 3/4" 3000 PSI SA (7/08-)

2шт.

13

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

427733A1

BRACKET

wheel mounting

2шт.

17

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

32шт.

18

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

68шт.

24

427745A2

BAR

vacuum support

44шт.

25

427829A1

BRACKET

hose routing

1шт.

26

87447161

BRACKET

hose routing

4шт.

27

141728C5

BRACKET

channel head

16шт.

29

401411A1

BUSHING

breakaway 1/2" thk 1 1/2" od 3/8" id hardened

4шт.
