(39.100.05) - FRAME - TOOLBAR 12 ROW

Запчасти Case IH 1240 (39.100.05) - FRAME - TOOLBAR 12 ROW (39) - FRAMES AND BALLASTING

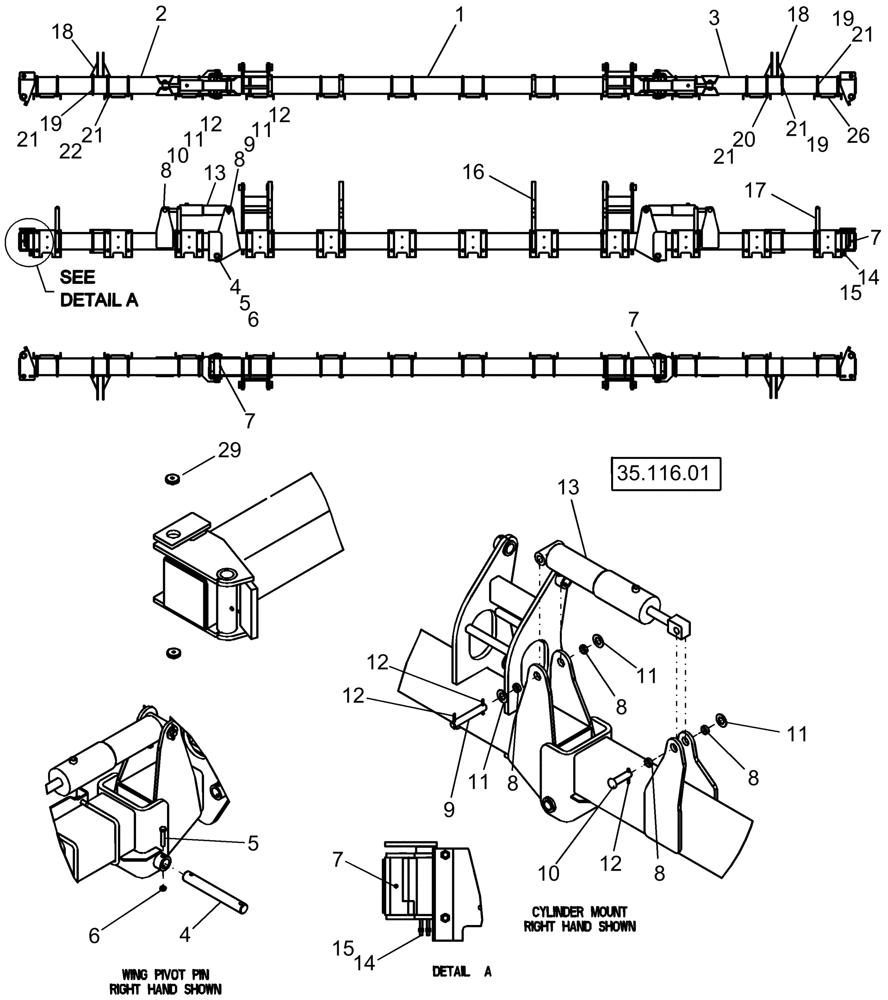

Схема запчастей Case IH 1240 - (39.100.05) - FRAME - TOOLBAR 12 ROW (39) - FRAMES AND BALLASTING
29
15
11
7
8
21
9
21
12
11
8
4
12
13
9
19
8
15
12
13
3
7
8
10
35.116.01
21
5
14
7
26
21
17
7
20
11
14
21
19
16
12
11
8
22
11
18
19
6
18
10
2
8
12
4
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87460953

TUBE,4735 mm L

center, 7" x 7"

1шт.

2

87474753

TUBE

30' wing with decal LH

1шт.

3

87474755

TUBE,2075 mm L

30' wing with decal RH

1шт.

4

401442A1

PIVOT PIN

1 1/2" od x 12" fl

2шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

6

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

8шт.

9

395611A1

PIN

cylinder anchor

2шт.

10

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

11

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

69шт.

12

88182

COTTER PIN,1/4" OD x 2" L

6шт.

13

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA

2шт.

13

87439451R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, TOOLBAR 12 ROW, wing 3 7/8" X 4 3/4" 3000 PSI SA (7/08-)

2шт.

13

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

14

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

15

86050277

NUT,5/16"-18, GB

4шт.

16

427745A2

BAR

vacuum support

4шт.

17

87447161

BRACKET

hose routing

4шт.

18

427733A1

BRACKET

wheel mounting

2шт.

19

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

24шт.

20

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

52шт.

26

141728C5

BRACKET

channel head

12шт.

29

410979A1

BUSHING

1.5" od .323" id .5" lg

4шт.
