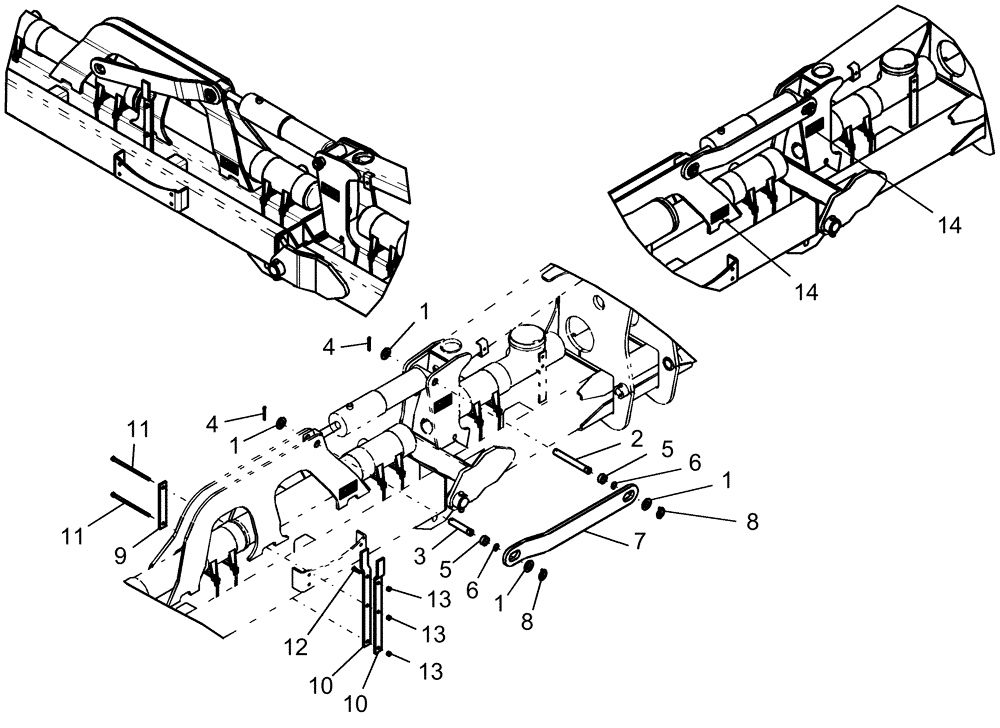

Запчасти Case IH 1240 (39.100.04) - WING LOCKUP - 24 ROW (39) - FRAMES AND BALLASTING

0

87462829

KIT

wing lock 24R20

1шт.

1

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

2

87462827

PIN

cylinder anchor

1шт.

3

87462568

PIN

cylinder rod end

1шт.

4

88182

COTTER PIN,1/4" OD x 2" L

2шт.

5

87462734

BUSHING

retaining - wing lock

2шт.

6

25121

SNAP RING,#100, Ext

2шт.

7

87462839

SECURING STRAP

wing lock

1шт.

8

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

2шт.

9

87463199

BRACKET

mounting 7 x 7

1шт.

10

87463198

BRACKET

storage

2шт.

11

413-6136

BOLT,Hex, 3/8" - 16 x 8-1/2", Gr 5

2шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

13

87039402

NUT,3/8"-16, GB

3шт.

14

87505131

DECAL

warning - crush hazard

2шт.
