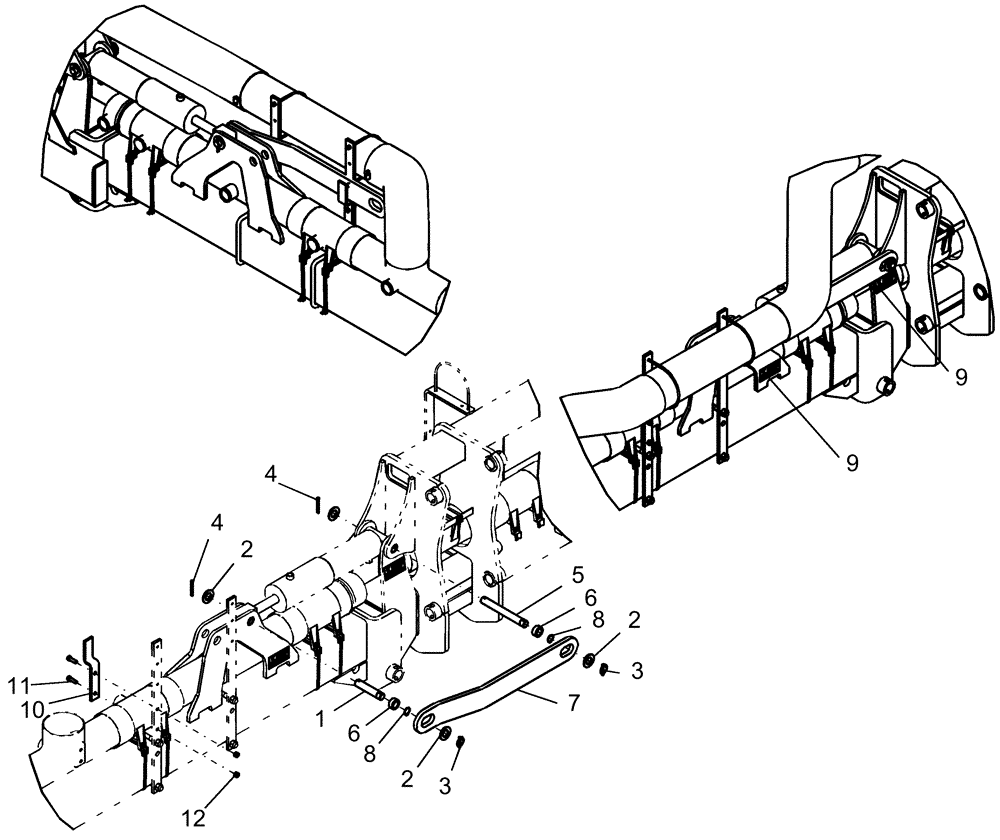

Запчасти Case IH 1240 (39.100.02) - WING LOCKUP - 12/23 ROW (39) - FRAMES AND BALLASTING

0

87505262

KIT

wing lock 12/23

1шт.

1

87462568

PIN

cylinder rod end

1шт.

2

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

3шт.

3

87459046

LINCH PIN

4.76 mm x 39.69 mm

2шт.

4

88182

COTTER PIN,1/4" OD x 2" L

2шт.

5

87462567

PIN

cylinder anchor 12/23 and 16/31

1шт.

6

87462734

BUSHING

retaining - wing lock

2шт.

7

87462826

SECURING STRAP

12/23 and 16/31

1шт.

8

87348940

SNAP RING

ext .925" id .042" tk

2шт.

9

87505131

DECAL

warning - crush hazard

2шт.

10

87463253

BRACKET

storage 12/23

1шт.

11

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

12

87039402

NUT,3/8"-16, GB

2шт.
