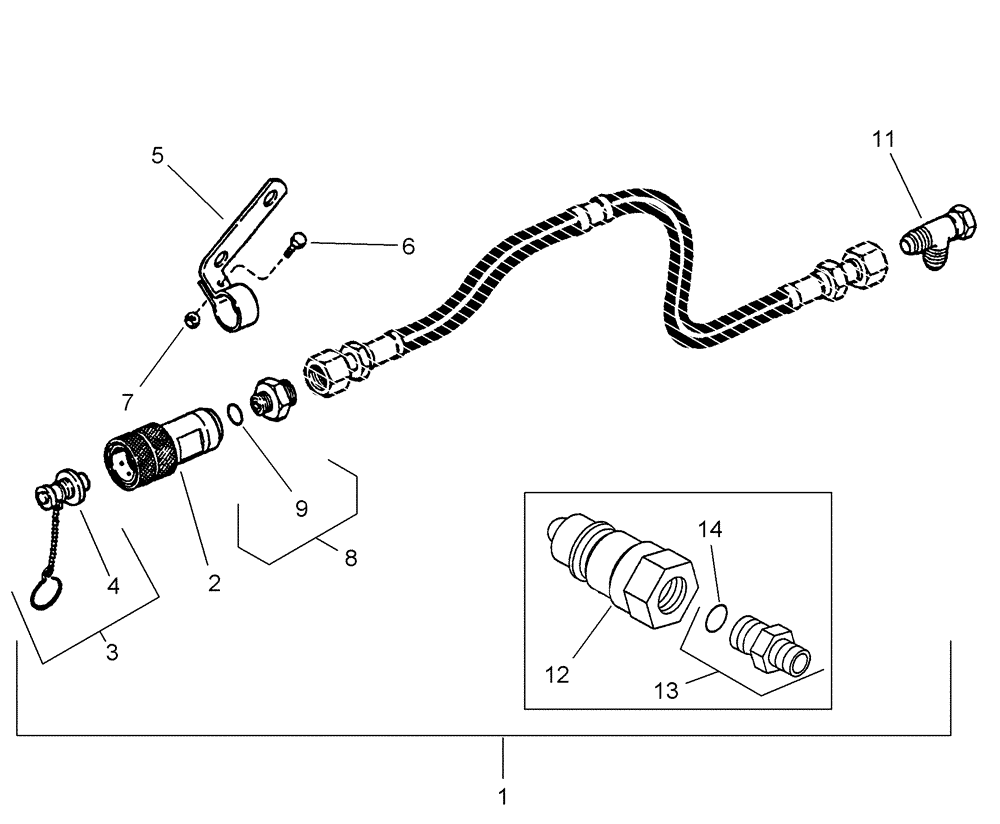

Запчасти Case IH 1240 (35.850.02) - MOTOR CASE DRAIN ATTACHMENT KIT - 9100, 9200 AND 9300 STEIGER TRACTORS (35) - HYDRAULIC SYSTEMS

1

367011A1

KIT

case drain - Steiger 9100, 9200 or 9300 series

1шт.

2

1272400C1

COUPLING

self sealing female ic

1шт.

3

1954133C1

PLUG

plug assembly

1шт.

4

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

5

1289294C1

SUPPORT

bracket, motor return coupler

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

11

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

12

1285718C2

QUICK MALE COUPLING

self-seal male half

1шт.

13

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
