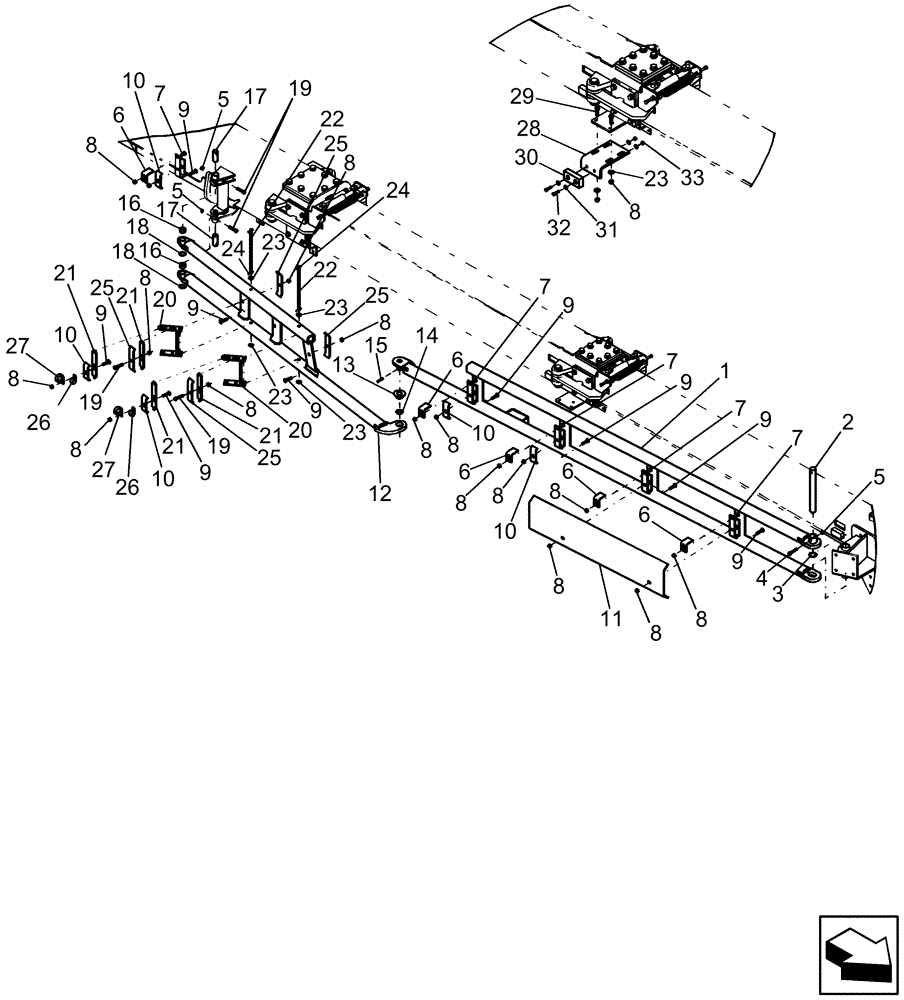

Запчасти Case IH 1240 (35.310.11) - TAKE-UP CARRIER 16 ROW, 16/31 ROW & 24 ROW (35) - HYDRAULIC SYSTEMS

1

87437111

LINK

long hose carrier, L=3155.0 mm (124.212")

1шт.

2

87437131

PIN

outer link pivot

1шт.

3

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

1шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

5

88902

NUT,3/8"-16

3шт.

6

87500022

BRACKET

hose retainer

5шт.

7

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

18шт.

9

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

9шт.

10

87500057

HOSE CLAMP

5шт.

11

87501803

TRAY

shield hose with reflector

1шт.

12

87501798

LINK

inner 40' with red reflector

1шт.

13

87439935

BUSHING

hose carrier linkage

1шт.

14

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

15

438-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

16

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

1шт.

17

87439957

PIN

hose carrier pivot

2шт.

18

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

2шт.

19

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

20

87444593

BRACKET

hose parallel link

2шт.

21

87444599

PLATE

hose mount pivot

4шт.

22

87445112

PIN

3/8" x 11" ul

2шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

24

80755

COTTER PIN,1/8" OD x 1" L

4шт.

25

87500063

HOSE CLAMP

hyd

4шт.

26

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

27

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

28

87500071

BRACKET

mount bumper pad

1шт.

29

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

30

CA-250

PAD

stop, bifold endmarker

1шт.

31

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

32

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

33

280129

NUT,1/4"-20

2шт.
