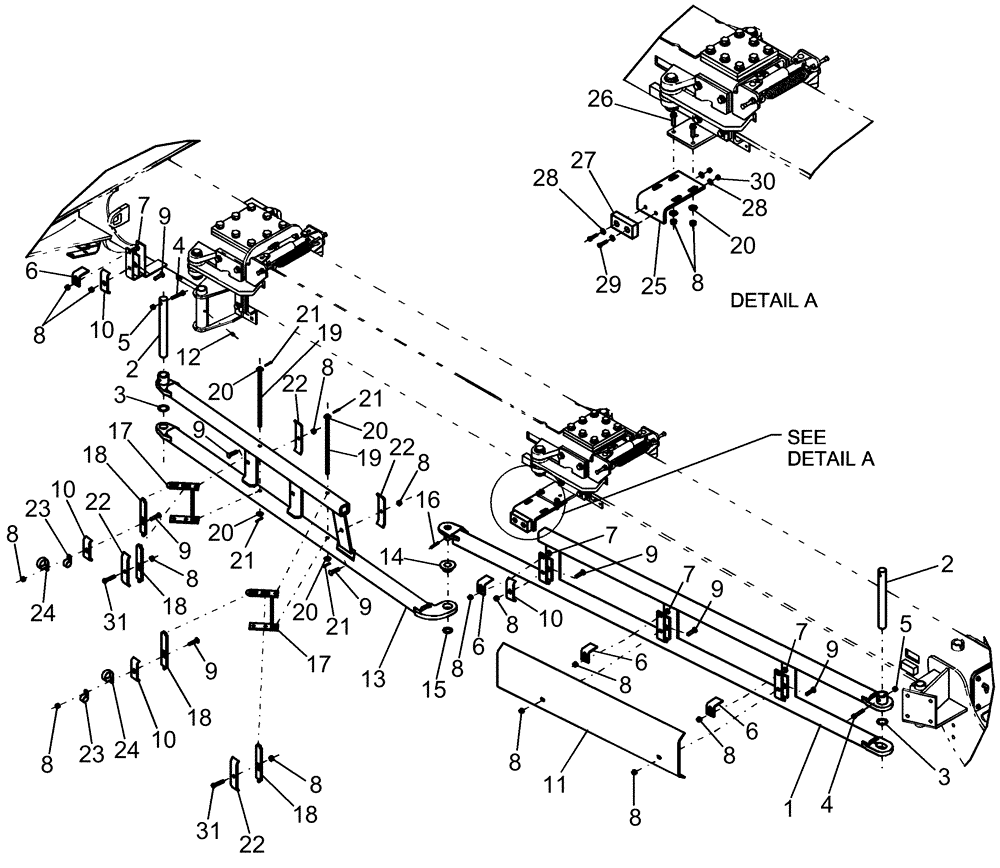

Запчасти Case IH 1240 (35.310.10) - TAKE-UP CARRIER 12 ROW & 12/23 ROW (35) - HYDRAULIC SYSTEMS

1

87500403

SUPPORT

link hitch carrier outer 30'

1шт.

2

87437131

PIN

outer link pivot

2шт.

3

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

5

88902

NUT,3/8"-16

2шт.

6

87500022

BRACKET

hose retainer

4шт.

7

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

16шт.

9

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

8шт.

10

87500057

HOSE CLAMP

4шт.

11

87501803

TRAY

shield hose with reflector

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

87501792

SUPPORT

inner link, 30' with reflector

1шт.

14

87439935

BUSHING

hose carrier linkage

1шт.

15

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

16

438-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

17

87444593

BRACKET

hose parallel link

2шт.

18

87444599

PLATE

hose mount pivot

4шт.

19

87445112

PIN

3/8" x 11" ul

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

21

80755

COTTER PIN,1/8" OD x 1" L

4шт.

22

87500063

HOSE CLAMP

hyd

4шт.

23

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

24

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

87500071

BRACKET

mount bumper pad

1шт.

26

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

27

CA-250

PAD

stop, bifold endmarker

1шт.

28

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

29

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

30

280129

NUT,1/4"-20

2шт.

31

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
