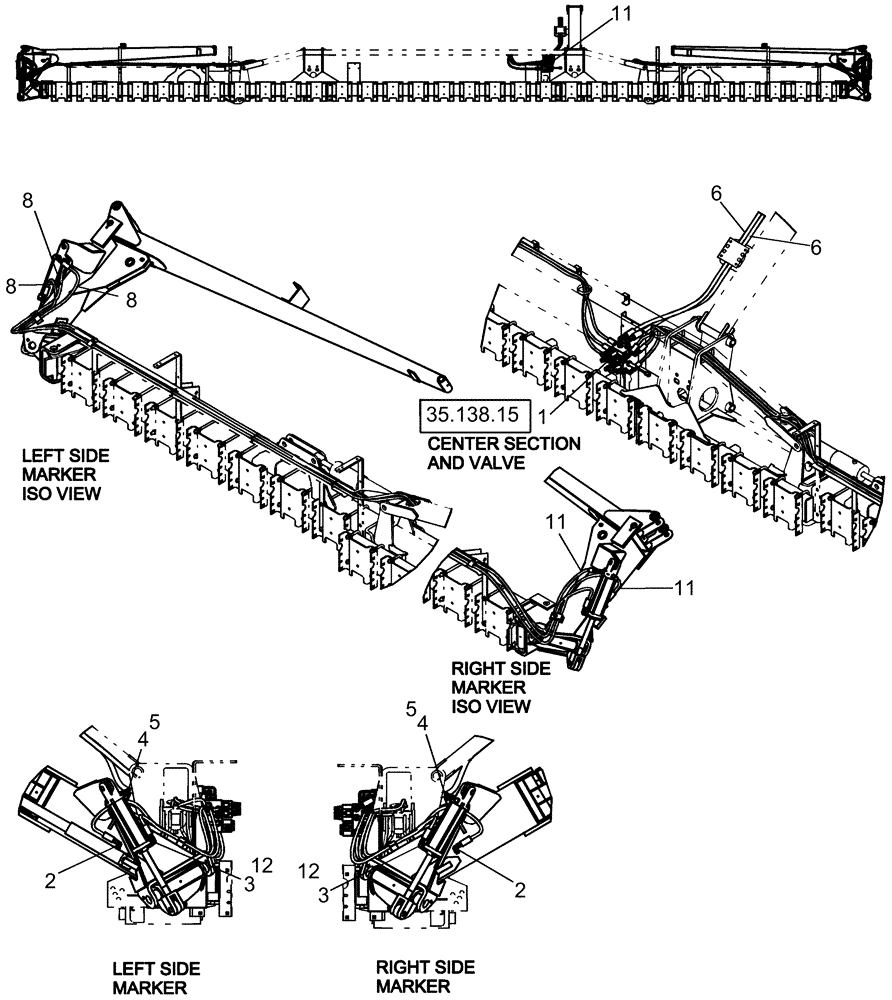

Запчасти Case IH 1240 (35.310.07) - LAYOUT HYD HOSES MARKERS 16/31 & 24 ROW (35) - HYDRAULIC SYSTEMS

1

401592A1

VALVE, CONTROL

assembly marker

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

3

367841A1

ELBOW

steel 90º 1/2" mb x 3/8" mj 0.04 orifice restrictor

2шт.

Includes O-Ring

1шт.

4

1263477C3

HYD CONNECTOR

union restrictor

2шт.

5

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

6

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

2шт.

8

87415059

HYDRAULIC HOSE,9.53mm ID x 8765mm L

3/8" x 345" fl

3шт.

11

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

3/8" x 230" fl

3шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
