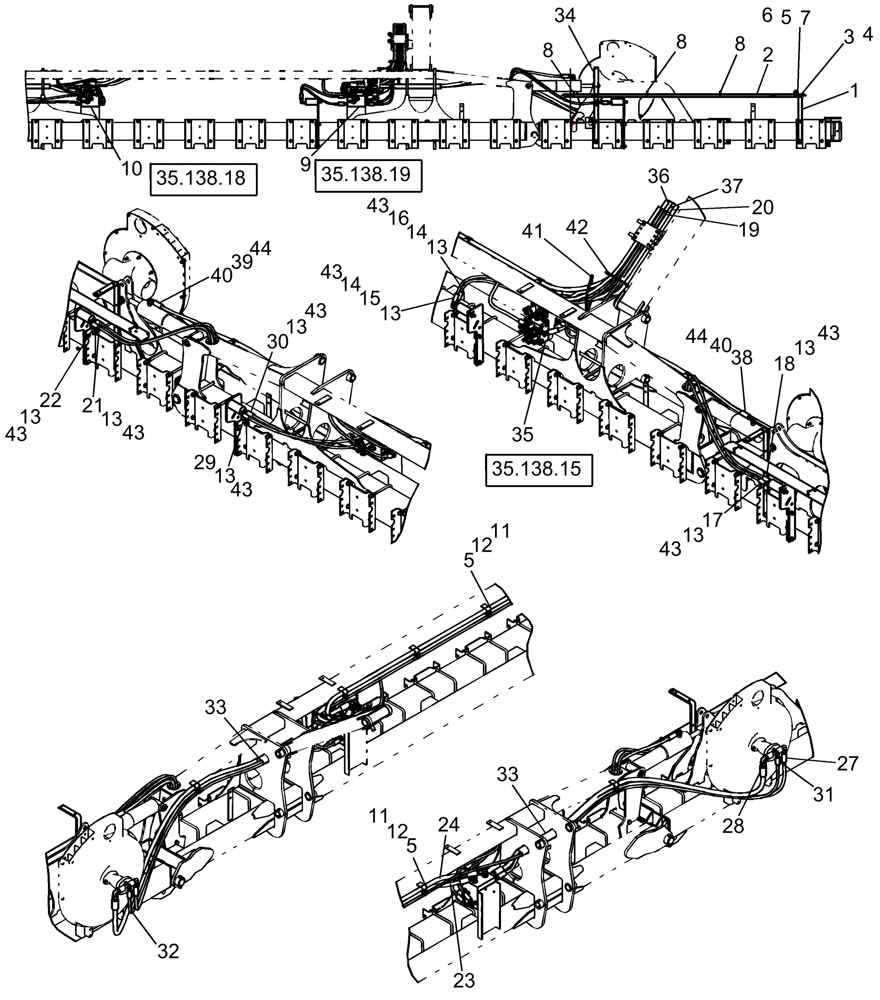

Запчасти Case IH 1240 (35.310.05) - LAYOUT HYD HOSES ROUTING 24 ROW (35) - HYDRAULIC SYSTEMS

1

87447161

BRACKET

hose routing

2шт.

Used with "Marker" Option

1шт.

2

87446926

BRACKET

hydraulic hose routing

2шт.

Used with "Marker" Option

1шт.

3

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

4шт.

Used with "Marker" Option

1шт.

4

86625061

NUT,1/4"-20, GB

4шт.

Used with "Marker" Option

1шт.

5

427781A1

HOSE CLAMP

2 hose

8шт.

Used with "Marker" Option

1шт.

5

427781A1

HOSE CLAMP

2 hose

2шт.

Used with "No Marker" Option

1шт.

6

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

Used with "Marker" Option

1шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

Used with "Marker" Option

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

Used with "Marker" Option

1шт.

9

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

10

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

11

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

12

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

6шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

Includes O-Ring

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

15

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

16

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

17

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

18

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

19

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

20

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

21

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

22

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

23

87454223

HYDRAULIC HOSE

5/8" x 175" fl

1шт.

24

87454225

HYDRAULIC HOSE

3/4" x 175" fl

1шт.

25

87448577

HYDRAULIC HOSE,19mm ID x 3100mm L, SAE 100R17

3/4" x 122" fl

1шт.

26

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.

27

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.

28

87446221

HYDRAULIC HOSE

3/4" x 111" fl

1шт.

29

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

30

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

31

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

32

1284251C1

HYDRAULIC HOSE

3/8" x 315" fl

1шт.

33

87458126

HOSE

sleeve, hyd protective 1 1/2" x 18"

2шт.

34

427745A2

BAR

vacuum support

2шт.

35

401592A1

VALVE, CONTROL

assembly marker

1шт.

36

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

37

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

38

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

39

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

40

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

Includes O-Ring

1шт.

41

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

42

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

43

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
