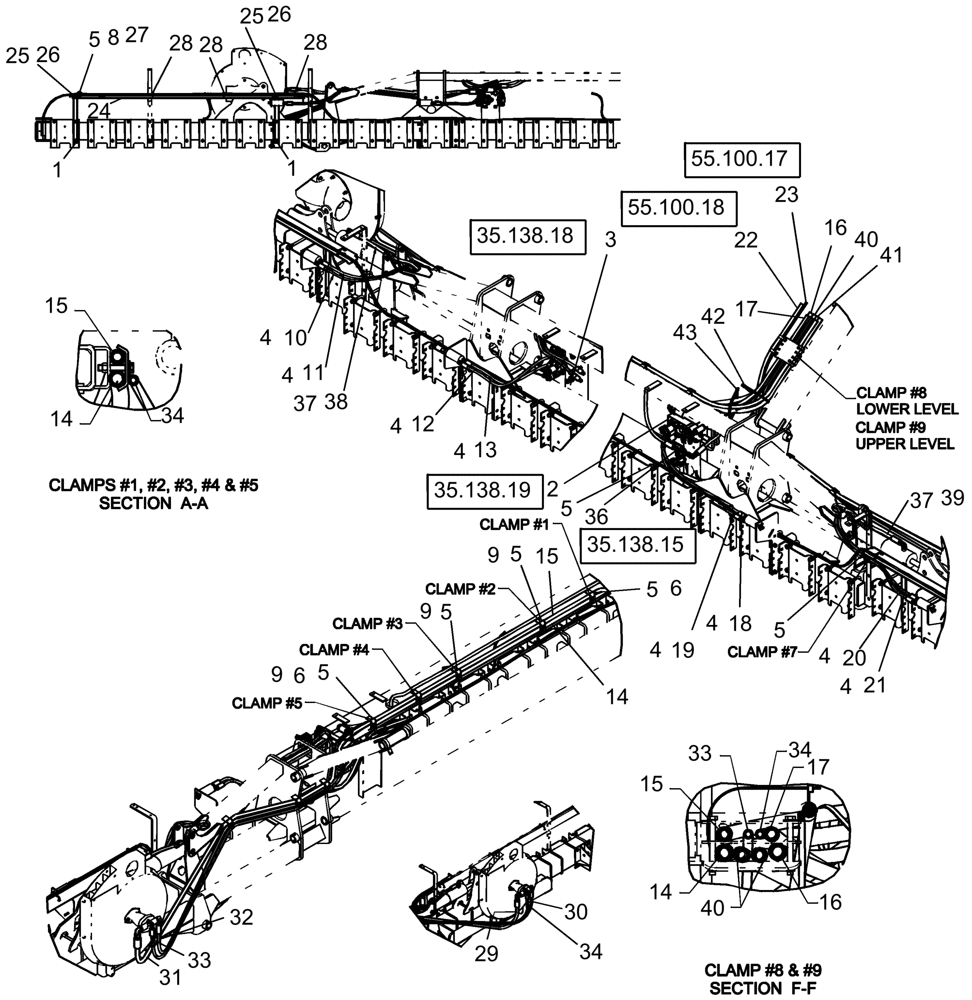

Запчасти Case IH 1240 (35.310.04) - LAYOUT HYD HOSES ROUTING 16/31 ROW (35) - HYDRAULIC SYSTEMS

1

87447161

BRACKET

hose routing

4шт.

Used with "Marker" Option

1шт.

2

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

3

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

12шт.

5

427781A1

HOSE CLAMP

2 hose

14шт.

Used with "Marker" Option

1шт.

5

427781A1

HOSE CLAMP

2 hose

2шт.

Used with "No Marker" Option

1шт.

6

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

11шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

3шт.

Used with "Marker" Option

1шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

Used with "No Marker" Option

1шт.

9

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

11шт.

10

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

11

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

12

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

13

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

14

87454225

HYDRAULIC HOSE

3/4" x 175" fl

1шт.

15

87454223

HYDRAULIC HOSE

5/8" x 175" fl

1шт.

16

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

17

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

18

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

19

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

20

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

21

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

22

87538545

HARNESS

pt toolbar, 4 section, ISOBUS

1шт.

23

87538543

HARNESS

pt frame, ISOBUS

1шт.

24

87446926

BRACKET

hydraulic hose routing

2шт.

Used with "Marker" Option

1шт.

25

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

4шт.

Used with "Marker" Option

1шт.

26

86625061

NUT,1/4"-20, GB

4шт.

Used with "Marker" Option

1шт.

27

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

Used with "Marker" Option

1шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

Used with "Marker" Option

1шт.

29

87446221

HYDRAULIC HOSE

3/4" x 111" fl

1шт.

30

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.

31

87448577

HYDRAULIC HOSE,19mm ID x 3100mm L, SAE 100R17

3/4" x 122" fl

1шт.

32

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.

33

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

34

1284251C1

HYDRAULIC HOSE

3/8" x 315" fl

1шт.

36

401592A1

VALVE, CONTROL

assembly marker

1шт.

37

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

38

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

39

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

40

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

41

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

42

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

43

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.
