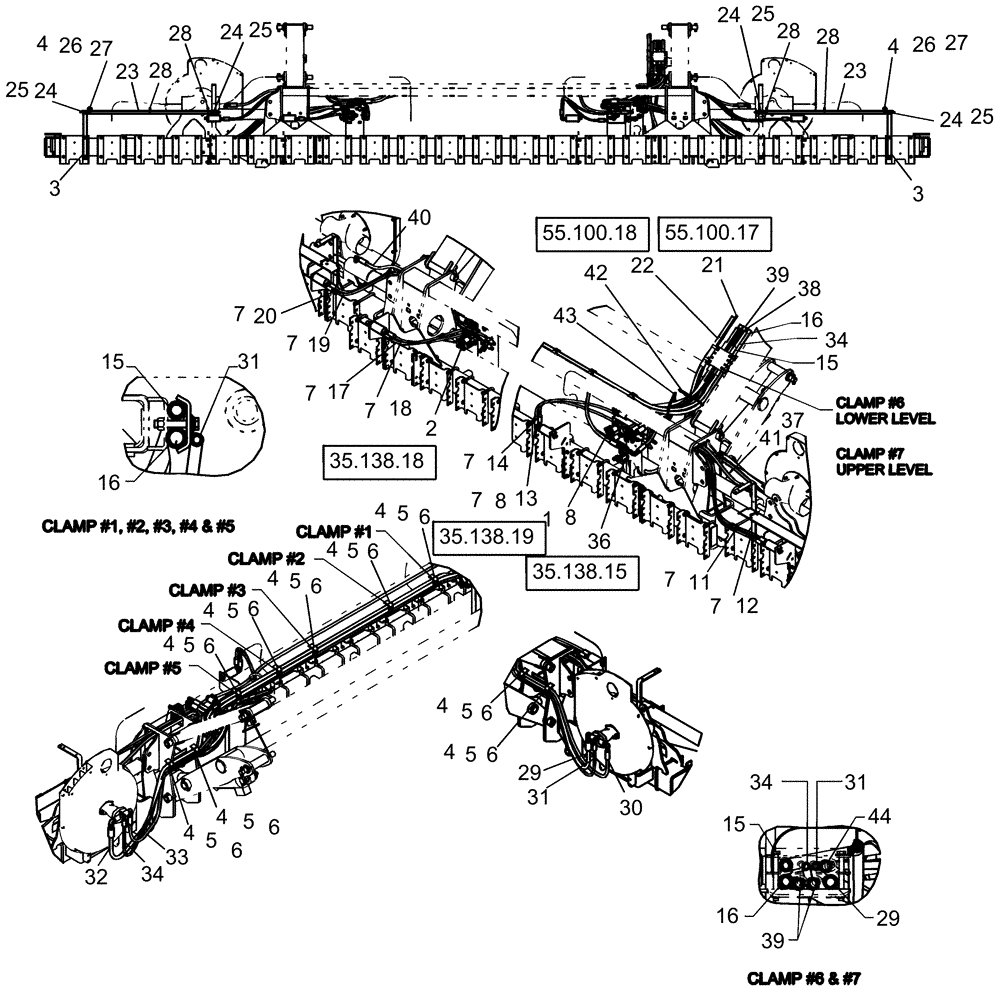

Запчасти Case IH 1240 (35.310.02) - LAYOUT HYD HOSES ROUTING 12/23 ROW (35) - HYDRAULIC SYSTEMS

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

2

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

3

87447161

BRACKET

hose routing

2шт.

Used with "Marker" Option

1шт.

4

427781A1

HOSE CLAMP

2 hose

11шт.

Used with "Marker" Option

1шт.

4

427781A1

HOSE CLAMP

2 hose

2шт.

Used with "No Marker" Option

1шт.

5

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

9шт.

6

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

10шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

9шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

9

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

10

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

11

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

12

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

13

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

14

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

15

87454633

HYDRAULIC HOSE

5/8" x 190" fl

1шт.

16

87454636

HYDRAULIC HOSE

3/4" x 188" fl

1шт.

17

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

18

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

19

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

20

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

21

87538543

HARNESS

pt frame, ISOBUS

1шт.

22

87538545

HARNESS

pt toolbar, 4 section, ISOBUS

1шт.

23

87446922

PLATE

hydraulic hose routing

2шт.

Used with "Marker" Option

1шт.

24

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

4шт.

Used with "Marker" Option

1шт.

25

86625061

NUT,1/4"-20, GB

4шт.

Used with "Marker" Option

1шт.

26

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

Used with "Marker" Option

1шт.

27

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

Used with "Marker" Option

1шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

Used with "Marker" Option

1шт.

29

87454634

HYDRAULIC HOSE

3/4" x 70" fl

1шт.

30

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

31

133933C2

HYDRAULIC HOSE

3/8" x 260" fl

1шт.

32

301277A1

HYDRAULIC HOSE,19.05mm ID x 2540mm L

3/4" x 90" fl

1шт.

33

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

34

1284369C1

HYDRAULIC HOSE

3/8" x 130" fl

1шт.

36

401592A1

VALVE, CONTROL

assembly marker

1шт.

37

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

38

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

39

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

40

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

1шт.

41

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

42

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

43

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

44

87454631

HYDRAULIC HOSE

5/8" x 77" fl

1шт.
