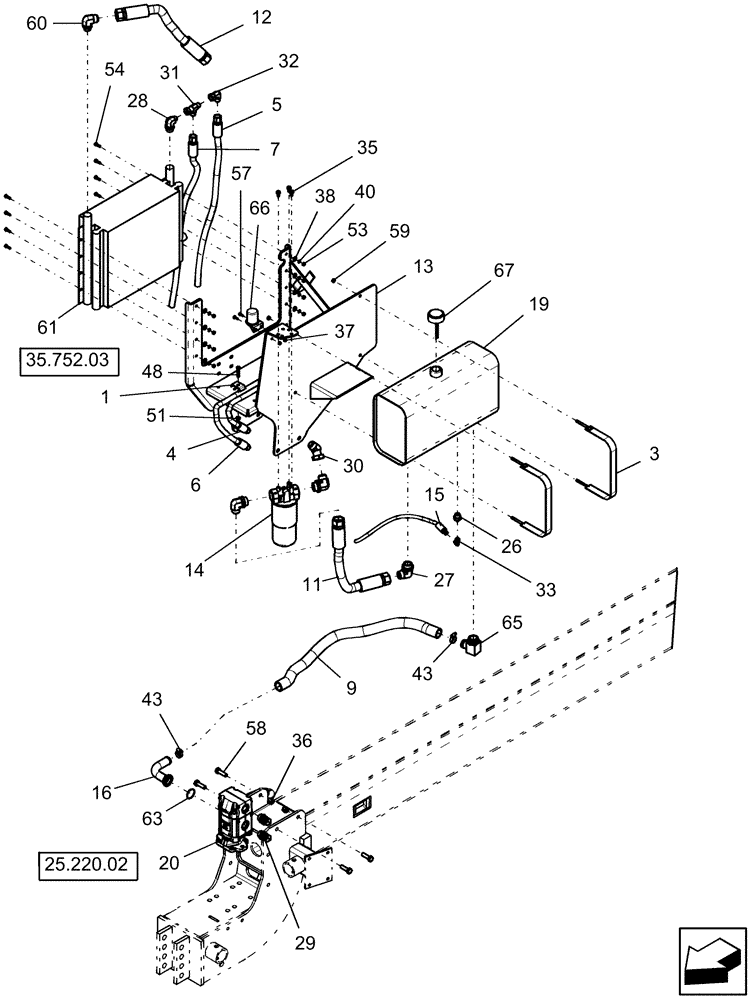

Запчасти Case IH 1240 (35.220.05) - 36 GPM PTO DRIVE - RESERVOIR, COOLER AND HOSES (35) - HYDRAULIC SYSTEMS

2

CC-105

HOSE CLAMP

for 2 hoses

2шт.

3

87399575

STRAP

11 gallon tank

2шт.

4

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

4

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

12 row and 12/23 row planters

1шт.

5

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

5

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

12 row and 12/23 row planters

1шт.

6

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

6

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row and 12/23 row planters

1шт.

7

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

7

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12 row and 12/23 row planters

1шт.

9

87624281

HOSE,38.10 mm ID x 2200.00 mm, SAE 100R4

Suction

1шт.

11

294178A1

HYDRAULIC HOSE

1 1/4" x 25.8" fl

1шт.

12

294178A1

HYDRAULIC HOSE

1 1/4" x 25.8" fl

1шт.

13

87474870

MOUNT

36 gpm cooler

1шт.

13

87619911

MOUNT

cooler and tank

1шт.

13

9826789

DANGER DECAL,180mm x 90mm H

rotating driveline

1шт.

13

87534382

DECAL

pto bolt torque

1шт.

14

87432158

FILTER ASSY

filter and head

1шт.

14

87432159

ELEMENT

filter Spin on

1шт.

15

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

15

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row and 12/23 row planters

1шт.

16

87722075

TUBE

90º 1 1/2" fl x 1 1/2" fl

1шт.

19

87399501

TANK

11 gallon

1шт.

20

87690666

PUMP

36 gpm Casappa

1шт.

20

87690666R

REMAN-HYD PUMP

36 gpm

1шт.

20

87690666C

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

1шт.

27

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

3шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

29

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

2шт.

30

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

1шт.

31

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

32

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

33

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

35

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

36

85700693

NUT,5/8" - 11, Gr C

4шт.

37

280129

NUT,1/4"-20

2шт.

38

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

40

80681

LOCK WASHER,5/16"

4шт.

43

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

48

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

51

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

53

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

54

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

57

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

58

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

59

231-1446

NUT,3/8" - 16, Gr 5

4шт.

60

87010672

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

61

87432160

OIL COOLER

PTO

1шт.

63

87632735

O-RING,1.859" ID x 2.137" OD x 0.139"

1.859 id x 2.137 od #225

1шт.

65

87733369

FITTING

90º 1 1/2" hb x 1 7/8" mb

1шт.

66

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

67

129575A1

CAP

breather with dipstick

1шт.
