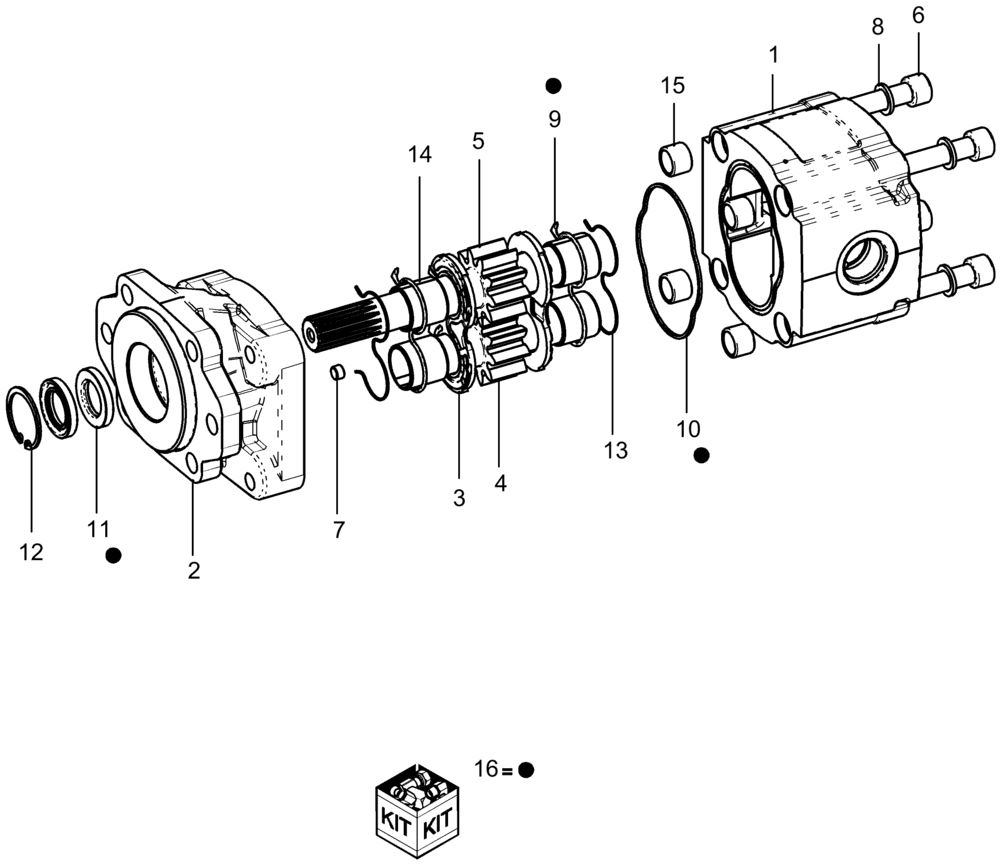

Запчасти Case IH 1240 (35.220.01[01]) - PUMP 22 GPM CASAPPA, 87690665 (35) - HYDRAULIC SYSTEMS

0

87690665

PUMP

22 gpm Casappa

1шт.

1

NS

NOT SERVICED

body

1шт.

2

NS

NOT SERVICED

cover

1шт.

3

NS

NOT SERVICED

thrust plate

2шт.

4

NS

NOT SERVICED

driven gear

1шт.

5

NS

NOT SERVICED

drive gear

1шт.

6

NS

NOT SERVICED

screw

4шт.

7

NS

NOT SERVICED

grub screw

1шт.

8

NS

NOT SERVICED

washer

4шт.

9

NS

NOT SERVICED

seal

2шт.

10

NS

NOT SERVICED

standard seal

1шт.

11

NS

NOT SERVICED

shaft seal

2шт.

12

NS

NOT SERVICED

ring

1шт.

13

NS

NOT SERVICED

antiextrusion ring

2шт.

14

NS

NOT SERVICED

sleeve bearing

4шт.

15

NS

NOT SERVICED

steel bushes

4шт.

16

87747675

SEAL

22 gpm Casappa pump

1шт.
