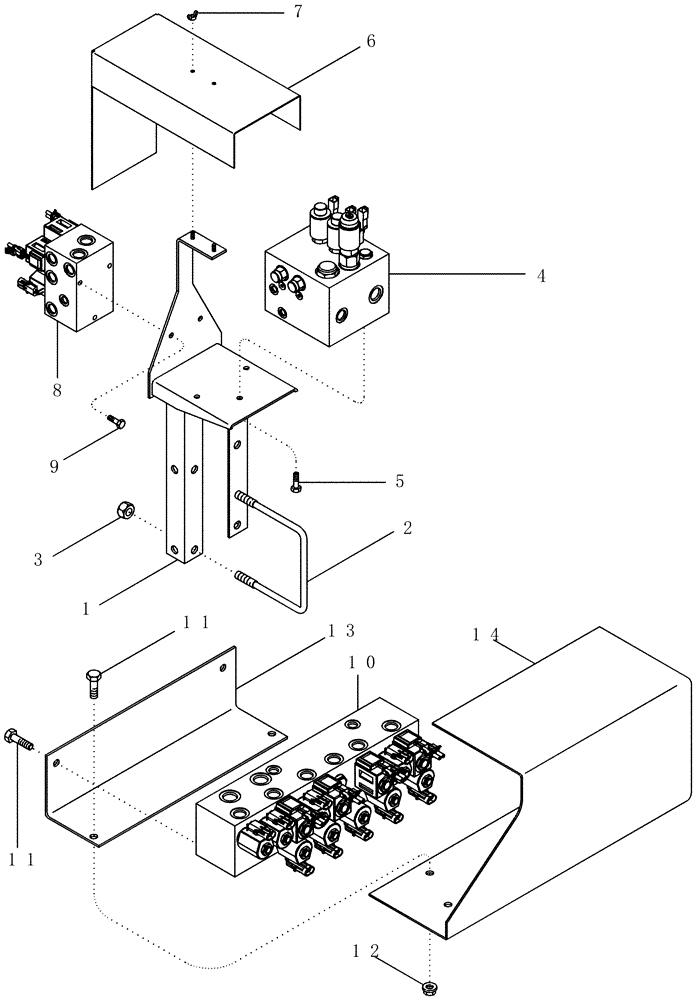

Запчасти Case IH 1240 (35.138.14) - HYDRAULIC VALVE MOUNTING (35) - HYDRAULIC SYSTEMS

1

427773A1

BRACKET

Mount

1шт.

2

1250813C1

U-BOLT

2шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

390535A2

VALVE, CONTROL

Multi BSN CBJ022056

1шт.

4

87439659

CONTROL VALVE

Direct Drive ASN CBJ022057

1шт.

4

417538A1

CONTROL VALVE

With PTO ASN CBJ022057

1шт.

5

86500682

NUT

3шт.

6

427775A1

SHIELD

1шт.

7

86627130

WING NUT,1/4"-20

2шт.

8

401592A1

VALVE, CONTROL

Marker

1шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

10

401591A1

VALVE, CONTROL

Lift And Fold

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

13

427823A1

BRACKET

Shield

1шт.

14

427821A1

BRACKET

Shield

1шт.
