Запчасти Case IH 1240 (35.138.13) - HYDRAULIC SYSTEM - MULTI-VALVE 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS

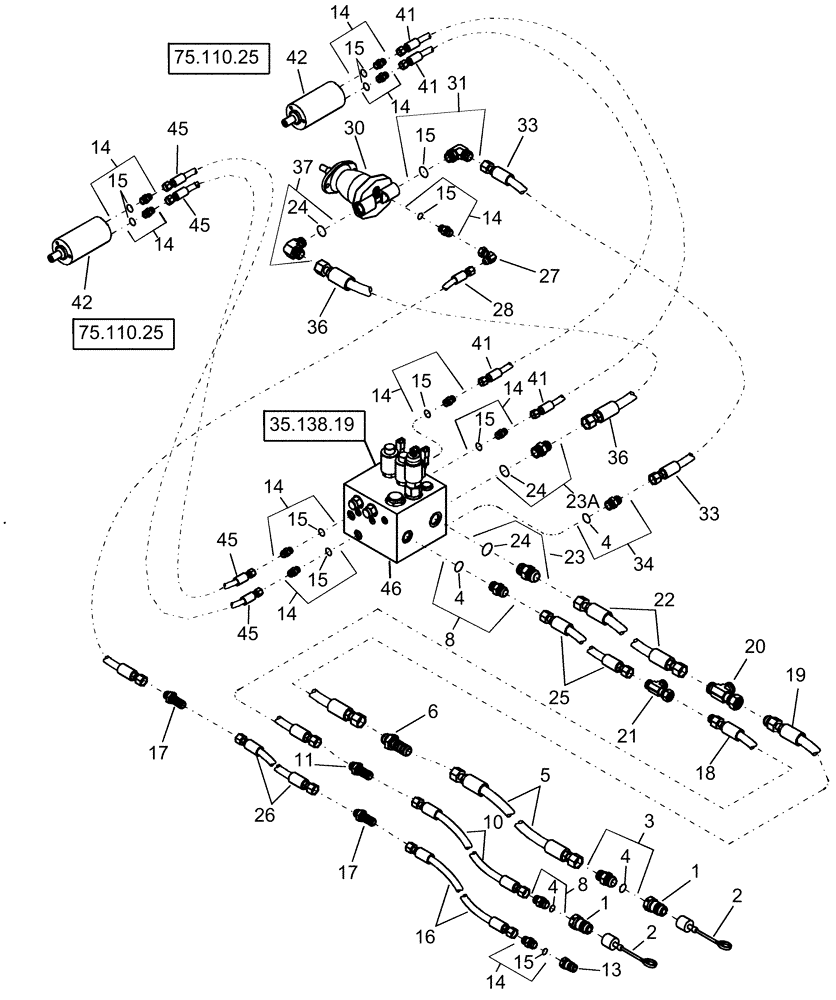

Схема запчастей Case IH 1240 - (35.138.13) - HYDRAULIC SYSTEM - MULTI-VALVE 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS
27
13
11
42
4
33
45
23a
3
30
4
4
8
20
41
4
15
17
6
42
2
36
24
33
22
36
14
5
24
14
14
1
23
10
28
75.110.25
75.110.25
35.138.19
15
14
15
34
14
8
21
17
45
26
14
15
41
15
15
41
16
41
2
15
14
14
46
18
15
45
31
1
14
24
19
14
25
15
37
45

Артикул

Название

Примечание

Количество

1

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

2

333721A1

CAP

female quick coupler red

2шт.

3

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

3шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

451593A1

HOSE,19mm ID x 1580mm L, SAE 100R17

extension return

1шт.

6

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

8

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

5шт.

10

451592A1

HOSE,16mm ID x 680mm L

extension press

1шт.

11

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

13

187562C1

QUICK MALE COUPLING

9/16"-18

1шт.

13

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

14

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row planter

1шт.

16

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

16 row planter

1шт.

17

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

18

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row planter

1шт.

18

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

16 row planter

1шт.

19

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12 row planter

1шт.

19

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

16 row planter

1шт.

20

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

21

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

22

87454627

HYDRAULIC HOSE

3/4" x 85" fl

1шт.

12 row planter

1шт.

22

87454316

HYDRAULIC HOSE,19mm ID x 2040mm L, SAE 100R17

3/4" x 80" fl

1шт.

16 row planter

1шт.

23

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

25

87454627

HYDRAULIC HOSE

3/4" x 85" fl

1шт.

12 row planter

1шт.

25

87454315

HYDRAULIC HOSE,16mm ID x 2230mm L, SAE 100R17

5/8" x 88" fl

1шт.

16 row planter

1шт.

26

1284298C1

HYDRAULIC HOSE

3/8" x 160" fl

1шт.

26

435694A1

HYDRAULIC HOSE

3/8" x 190" fl

1шт.

27

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

28

390649R92

HYDRAULIC HOSE

1/2" x 19" fl

1шт.

30

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

30

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

30

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

31

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

33

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

34

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

35

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

36

410544A1

HYDRAULIC HOSE

3/4" x 65" fl

1шт.

37

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

41

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

1шт.

12 row planter

1шт.

41

435694A1

HYDRAULIC HOSE

3/8" x 190" fl

1шт.

16 row planter

1шт.

42

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

4шт.

42

293288A1R

REMAN-HYD MOTOR

1240 Pivot Transport Planter, 12 & 16 Row

4шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

45

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

12 row planter

1шт.

45

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

16 row planter

1шт.

46

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

Выбрано товаров: 65
