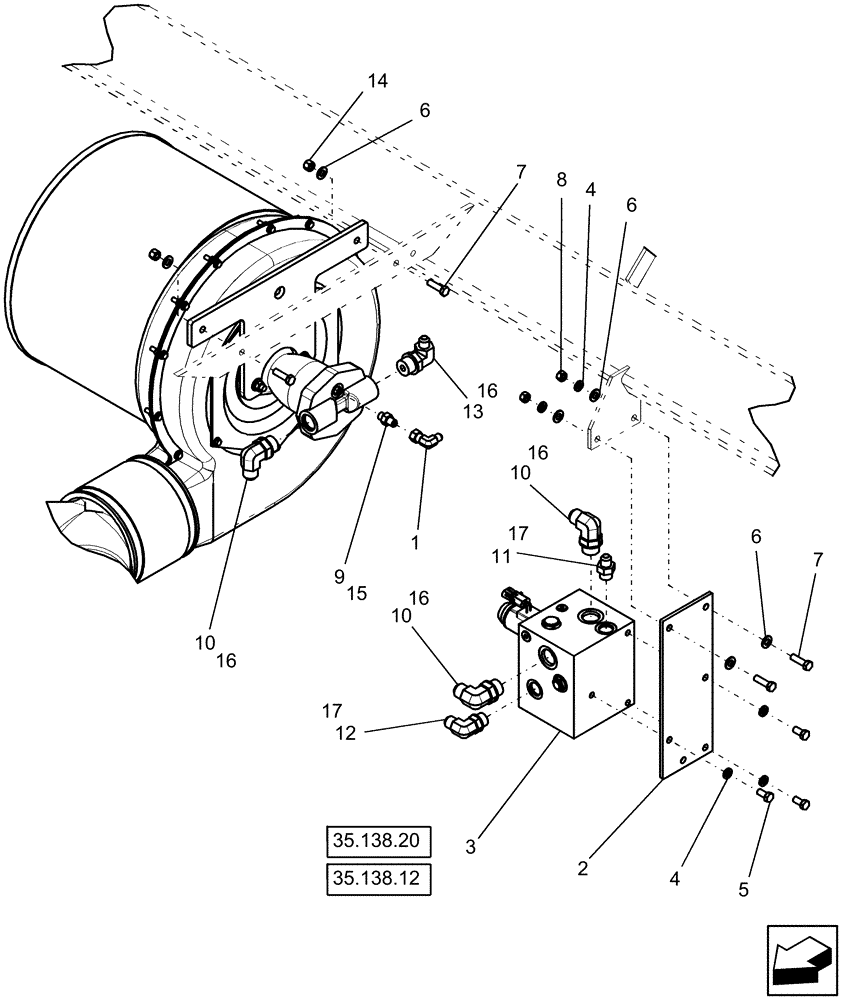

Запчасти Case IH 1240 (35.138.11) - VALVE BLOCK AND FAN MOTOR DETAIL - BULK FILL HYDRAULICS 12/23 ROW, 16/31 ROW & 24 ROW (35) - HYDRAULIC SYSTEMS

1

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

2

86988939

BRACKET

bulk fill valve

1шт.

3

87438424

VALVE

assembly bulk fill PTO with plugs

1шт.

PTO drive

1шт.

3

431468A1

VALVE

assembly bulk fill

1шт.

Direct Drive

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

6

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

8

9628503

NUT,3/8"-16, G5

2шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

Includes O-Ring

1шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

Includes O-Ring

1шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

Includes O-Ring

1шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

Includes O-Ring

1шт.

13

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

14

88902

NUT,3/8"-16

2шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
