Запчасти Case IH 1240 (35.138.07) - LAYOUT NO MARKER OPTION VALVE MOUNT - 12 ROW & 16 ROW (35) - HYDRAULIC SYSTEMS

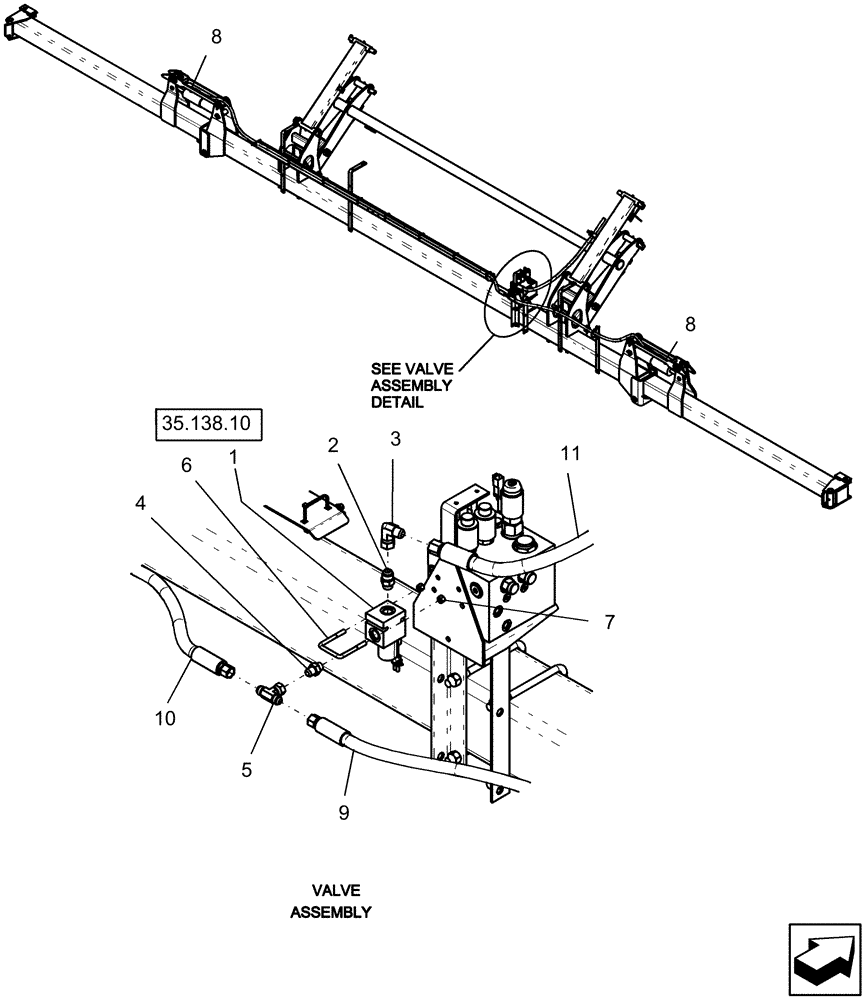

Схема запчастей Case IH 1240 - (35.138.07) - LAYOUT NO MARKER OPTION VALVE MOUNT - 12 ROW & 16 ROW (35) - HYDRAULIC SYSTEMS
5
10
9
35.138.10
11
3
7
8
2
1
6
4
8

Артикул

Название

Примечание

Количество

1

87582248

VALVE

bi-directional solenoid

1шт.

2

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

3

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

5

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

6

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

1шт.

7

86050277

NUT,5/16"-18, GB

2шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

9

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

16 row planter

1шт.

9

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

12 row planter

1шт.

10

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

16 row planter

1шт.

10

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2" x 165" fl

1шт.

12 row planter

1шт.

11

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

Выбрано товаров: 17
