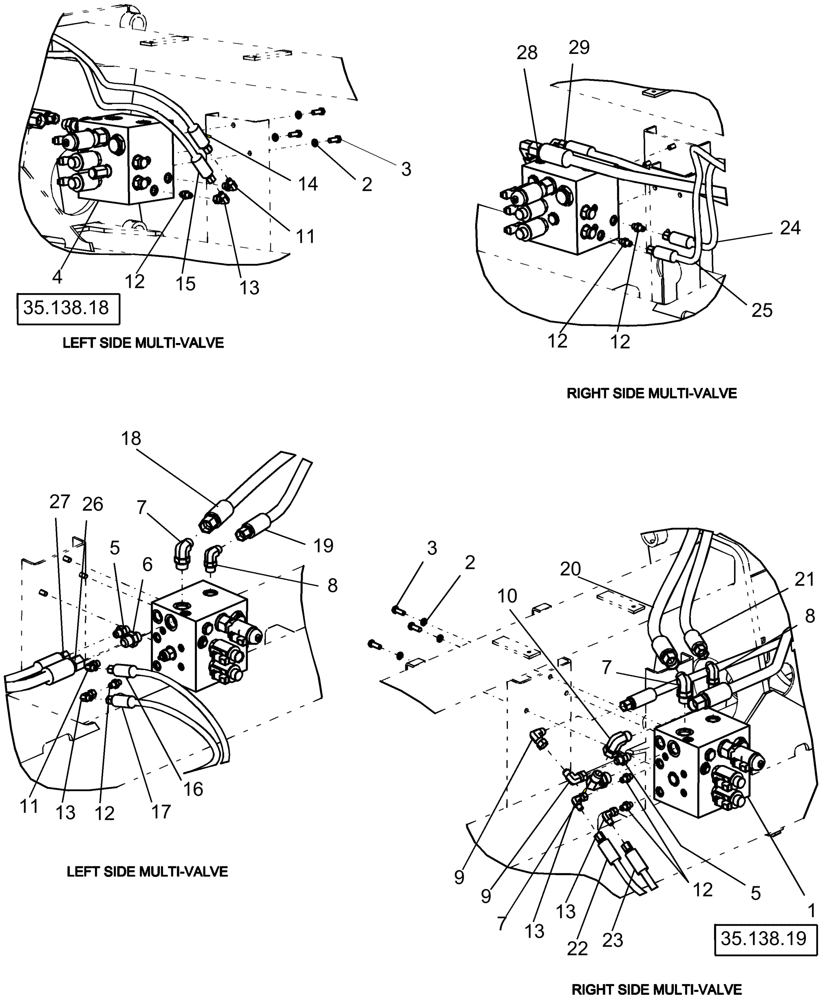

Запчасти Case IH 1240 (35.138.03) - LAYOUT MULTI-VALVES MOUNTING 16/31 ROW (35) - HYDRAULIC SYSTEMS

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

9

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

6шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

14

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

15

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

16

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

17

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

18

87454225

HYDRAULIC HOSE

3/4" x 175" fl

1шт.

19

87454223

HYDRAULIC HOSE

5/8" x 175" fl

1шт.

20

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

21

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

22

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

23

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

24

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

25

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

26

87446221

HYDRAULIC HOSE

3/4" x 111" fl

1шт.

27

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.

28

87448577

HYDRAULIC HOSE,19mm ID x 3100mm L, SAE 100R17

3/4" x 122" fl

1шт.

29

411930A1

HYDRAULIC HOSE

1/2" x 115" fl

1шт.
