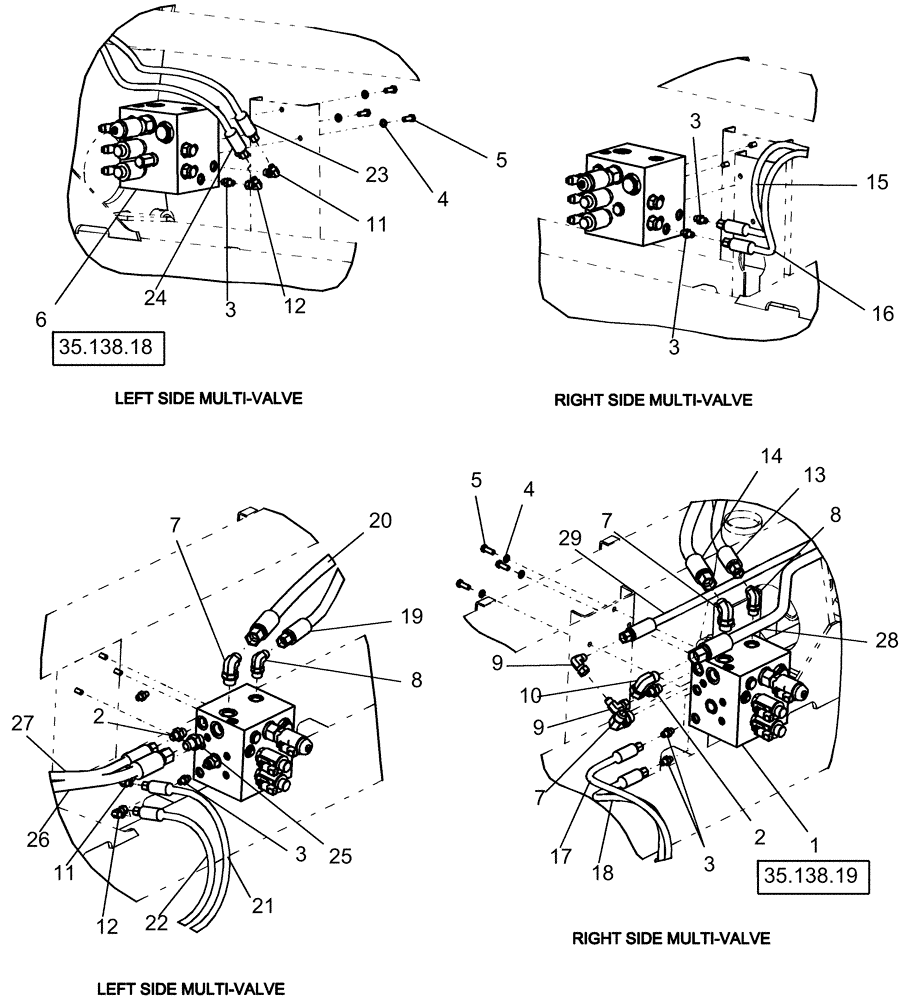

Запчасти Case IH 1240 (35.138.01) - LAYOUT MULTI-VALVES MOUNTING 12/23 ROW (35) - HYDRAULIC SYSTEMS

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

6шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

6

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

Direct Drive

1шт.

6

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

PTO drive

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

9

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

12

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

13

87454632

HYDRAULIC HOSE

5/8" x 525" fl

1шт.

14

87454635

HYDRAULIC HOSE

3/4" x 520" fl

1шт.

15

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

16

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

17

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

18

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

19

87454633

HYDRAULIC HOSE

5/8" x 190" fl

1шт.

20

87454636

HYDRAULIC HOSE

3/4" x 188" fl

1шт.

21

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

22

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

23

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

24

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

25

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

26

87454634

HYDRAULIC HOSE

3/4" x 70" fl

1шт.

27

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

28

301277A1

HYDRAULIC HOSE,19.05mm ID x 2540mm L

3/4" x 90" fl

1шт.

29

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.
