Запчасти Case IH 1240 (35.124.03) - HITCH TORQUE RESTRAINT KIT - STX STEIGER TRACTORS WITH HEAVY DUTY DRAWBARS (35) - HYDRAULIC SYSTEMS

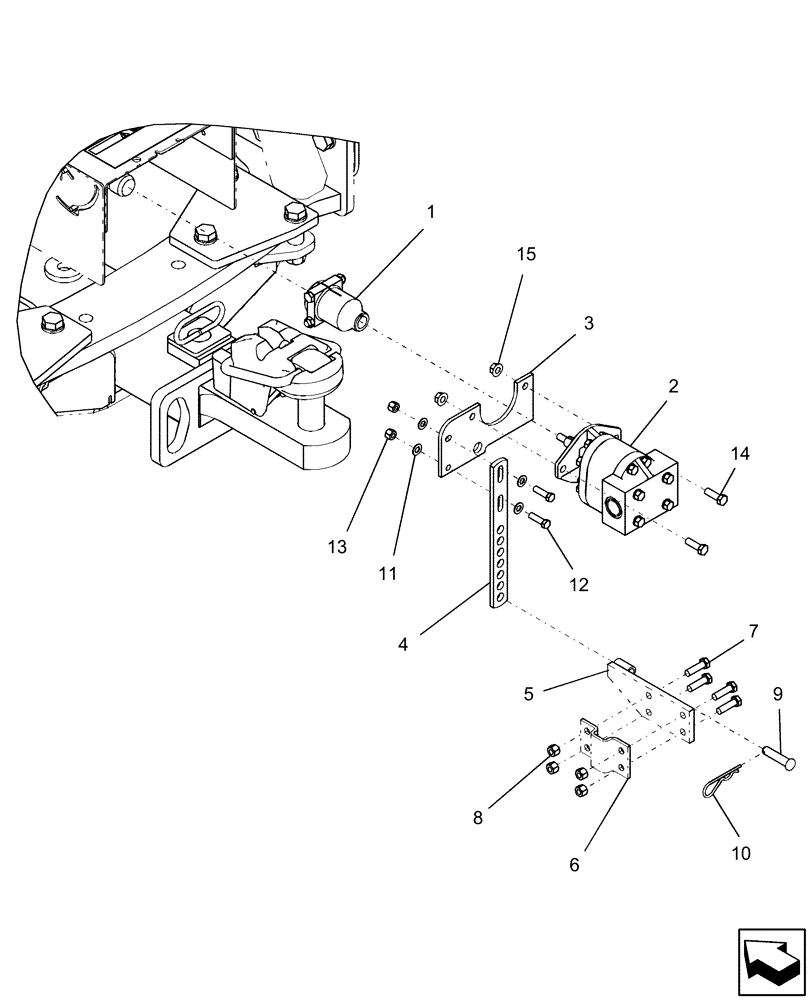

Схема запчастей Case IH 1240 - (35.124.03) - HITCH TORQUE RESTRAINT KIT - STX STEIGER TRACTORS WITH HEAVY DUTY DRAWBARS (35) - HYDRAULIC SYSTEMS
7
5
9
15
12
6
10
2
1
13
11
14
4
8
3

Артикул

Название

Примечание

Количество

0

87405668

PACKAGE

PTO restraint-STX heavy duty drawbar

1шт.

1

1958268C1

COUPLING

1 3/4"

1шт.

For Tractors with 1 3/4" PTO shaft

1шт.

1

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1 3/8"

1шт.

For Tractors with 1 3/8" PTO shaft

1шт.

2

293243A1

PUMP

PTO 5.84 in3/rev

1шт.

2

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

2

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87619629R

REMAN-HYD PUMP

1240 (7/08-), Reman For New P/N 293243A1

1шт.

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

Q53

KEY,1/4" Sq x 1", Par

1шт.

Comes with the pump, but can be ordered separately

1шт.

2

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

Comes with the pump, but can be ordered separately

1шт.

2

310572A1

SEAL KIT

shaft pto pump

1шт.

3

87409593

MOUNTING PLATE

pump

1шт.

4

437631A1

BRACKET

adjusting

1шт.

5

87403461

SUPPORT

PTO restraint, Steiger

1шт.

6

87403457

BRACKET

PTO restraint lock

1шт.

7

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

8

86992215

LOCK NUT,1/2"-13, GC

4шт.

9

86624085

HEADED PIN,15.88mm OD x 69.85mm L

1шт.

10

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

11

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

12

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

13

86637736

NUT,7/16"-14, GB

2шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

15

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

100

87405669

PACKAGE

PTO restraint-STX/TJ heavy duty drawbar

1шт.

Includes Refs. 3, 5, 6, 7, 8, 9, 10

1шт.
