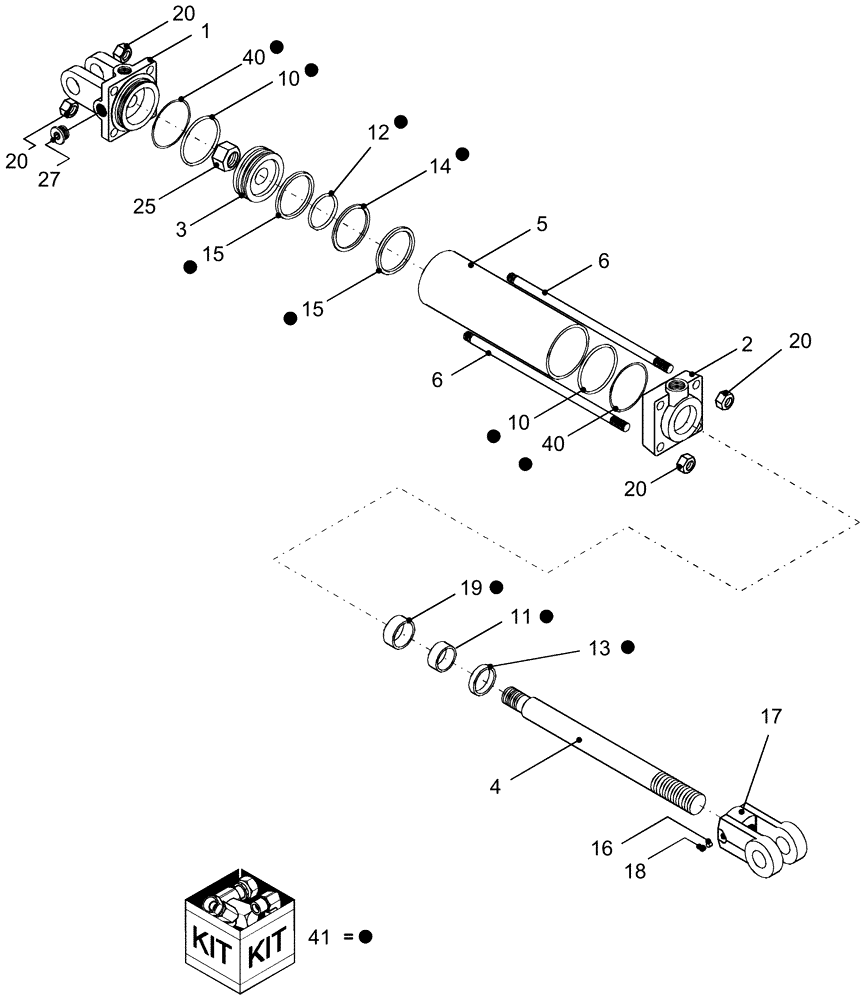

Запчасти Case IH 1240 (35.116.08) - HYDRAULIC CYLINDER - 87461047 (35) - HYDRAULIC SYSTEMS

0

87461047

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 50.8mm Stroke

3" x 2"

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

87582273

CYLINDER END CAP

3" rod end

1шт.

3

87655361

PISTON

3 x 2 cylinder

1шт.

4

87655358

PISTON ROD

3 x 2 cylinder

1шт.

5

87655359

TUBE

3 x 2 cylinder

1шт.

6

87655360

THREADED TIE-ROD

3 x 2 cylinder

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING 2.234 ID 2.512 OD .139 CLASS 6 SAE-228

2шт.

Included in repair kit 87655356

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87655356

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING 2.234 ID 2.512 OD .139 CLASS 6 SAE-228

1шт.

Included in repair kit 87655356

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87655356

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87655356

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87655356

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87655356

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87655356

1шт.

41

87655356

SEAL KIT

3 x 2 cylinder

1шт.
