Запчасти Case IH 1240 (90.108.01) - LAYOUT - DECALS, 30 MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

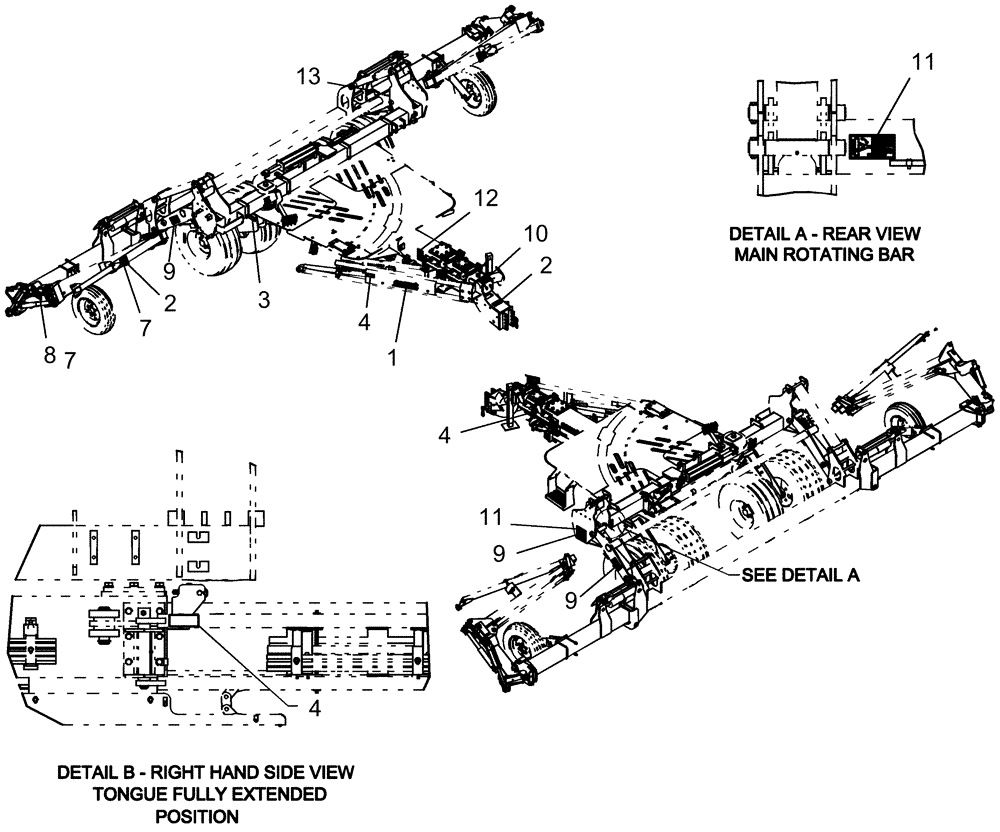

Схема запчастей Case IH 1240 - (90.108.01) - LAYOUT - DECALS, 30 MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
4
12
9
2
7
3
7
11
8
1
2
4
4
10
13
9
9

Артикул

Название

Примечание

Количество

1

248365A1

DECAL

Case IH logo, Years: -01-DEC-08

2шт.

1

87653276

DECAL

Case IH (350 mm x 83 mm), Start Year: 01-DEC-08

2шт.

2

414152A1

WARNING DECAL

Misuse Hazard

3шт.

2

87527148

WARNING DECAL

Misuse Hazard French

3шт.

3

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

4

1284365C2

REFLECTOR

amber 1.97" x 4.3"

4шт.

7

413670A1

WARNING DECAL

crush hazard

4шт.

7

87527144

WARNING DECAL

Crush Hazard French

4шт.

8

416611A1

DECAL

danger electrical electrocution hazard

2шт.

8

87527149

DECAL

danger electrical electrocution hazard French

2шт.

9

413671A1

WARNING DECAL

Crush Hazard Cylinder

3шт.

9

87527145

WARNING DECAL

Crush Hazard Cylinder French

3шт.

10

413672A1

WARNING DECAL

Machine Tipping Hazard

1шт.

10

87527146

WARNING DECAL

Machine Tipping Hazard French

1шт.

11

413673A1

WARNING DECAL

Strike Hazard Folding

2шт.

11

87527147

WARNING DECAL

Strike Hazard Folding French

2шт.

12

419481A1

DECAL

crush danger

1шт.

13

87462248

DECAL

small crush hazard

2шт.

13

87549764

DECAL

SMALL WARNING CRUSH HAZARD CYLINDER French

2шт.

Выбрано товаров: 19
