Запчасти Case IH 1240 (35.116.06) - HYDRAULIC CYLINDER - 86991779 (35) - HYDRAULIC SYSTEMS

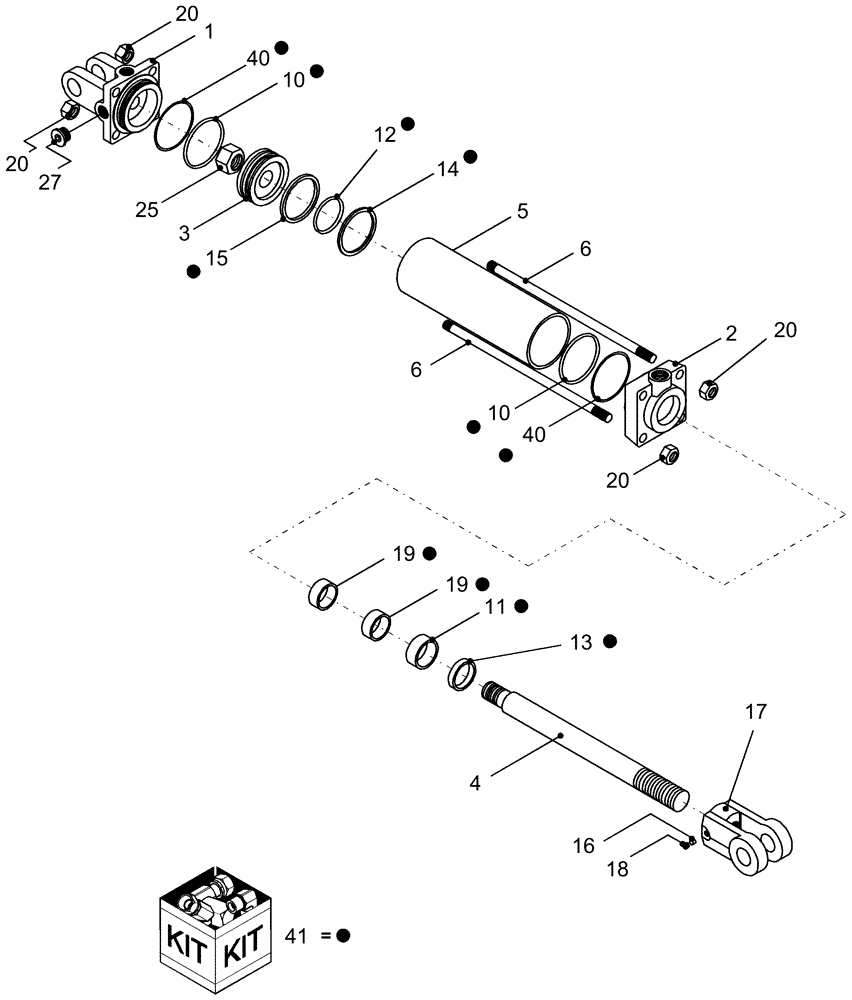

Схема запчастей Case IH 1240 - (35.116.06) - HYDRAULIC CYLINDER - 86991779 (35) - HYDRAULIC SYSTEMS
25
15
10
4
6
12
41
16
20
40
19
19
1
20
17
18
14
20
3
20
13
40
10
2
6
11
27
5

Артикул

Название

Примечание

Количество

0

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

1шт.

1

439275A1

CYLINDER END CAP

cylinder base 2 1/2" bore

1шт.

2

87409409

HEAD

cylinder front 2.5" bore x 1.25" rod

1шт.

3

87409477

PISTON

cylinder 2 1/2" bore Monarch #494726

1шт.

4

87409456

PISTON ROD

1 1/4" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409488

THREADED TIE-ROD

3/8"-16

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87405834

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87405834

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405834

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87405834

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87405834

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87405834

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405834

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

25

87021832

LOCK NUT,3/4"-16, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87405834

1шт.

41

87405834

SEAL KIT

hyd cylinder 2 1/2" Monarch with 1 1/4" rod

1шт.

Выбрано товаров: 30
