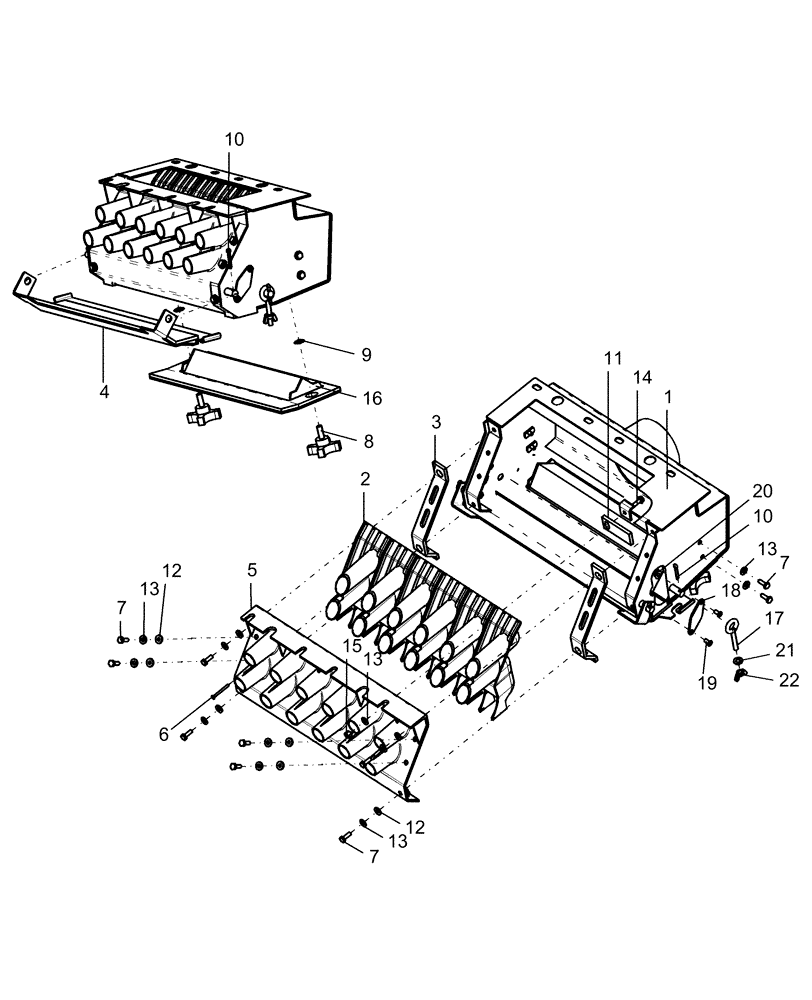

Запчасти Case IH 1240 (80.150.15[02]) - BULK FILL - SEED BOX 87473728, 24 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87473728

HOUSING

12 port distributor

1шт.

2

87444532

MANIFOLD

segmented inductor

6шт.

3

407094A2

GASKET

neoprene front black 1 1/4" w x 9 5/8" l x 1/4"

2шт.

4

87479932

GASKET

bottom cover, 12 port, Years: -01-MAR-10

1шт.

4

84202249

GASKET

bottom cover, 12 port, Start Year: 01-APR-10

1шт.

4

87473729

COVER PLATE

12 port bottom

1шт.

5

87502066

MANIFOLD

front cover - 12 port

1шт.

6

87017483

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

6шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

12шт.

8

87446077

KNOB

3/8"-16 x 1" stud

2шт.

9

87446196

RETAINER

nut, push-on 3/8"

2шт.

10

87397

COTTER PIN,3/16" OD x 1" L

4шт.

11

87502068

GASKET

neoprene black 1 7/32" wide x 3" long x 1/4" thk

1шт.

12

21676

RUBBER WASHER

1/4"id 5/8" 7/16"tk

8шт.

13

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

13шт.

14

523292

BOLT,1/4" - 20 x 1.03" OAL

1шт.

15

86625061

NUT,1/4"-20, GB

1шт.

16

87748756

GASKET

12 port hatch, Years: -01-MAR-10

1шт.

16

84193590

GASKET

12 port hatch, Start Year: 01-APR-10

1шт.

16

87473727

HATCH

12 port

1шт.

17

87749881

EYEBOLT

2шт.

18

87473730

COVER PLATE

side

2шт.

19

88769

HEX SOC SCREW,BTN HD, 1/4" - 20 x 1/2"

4шт.

20

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

22

80801

WING NUT

5/16"-18

2шт.
