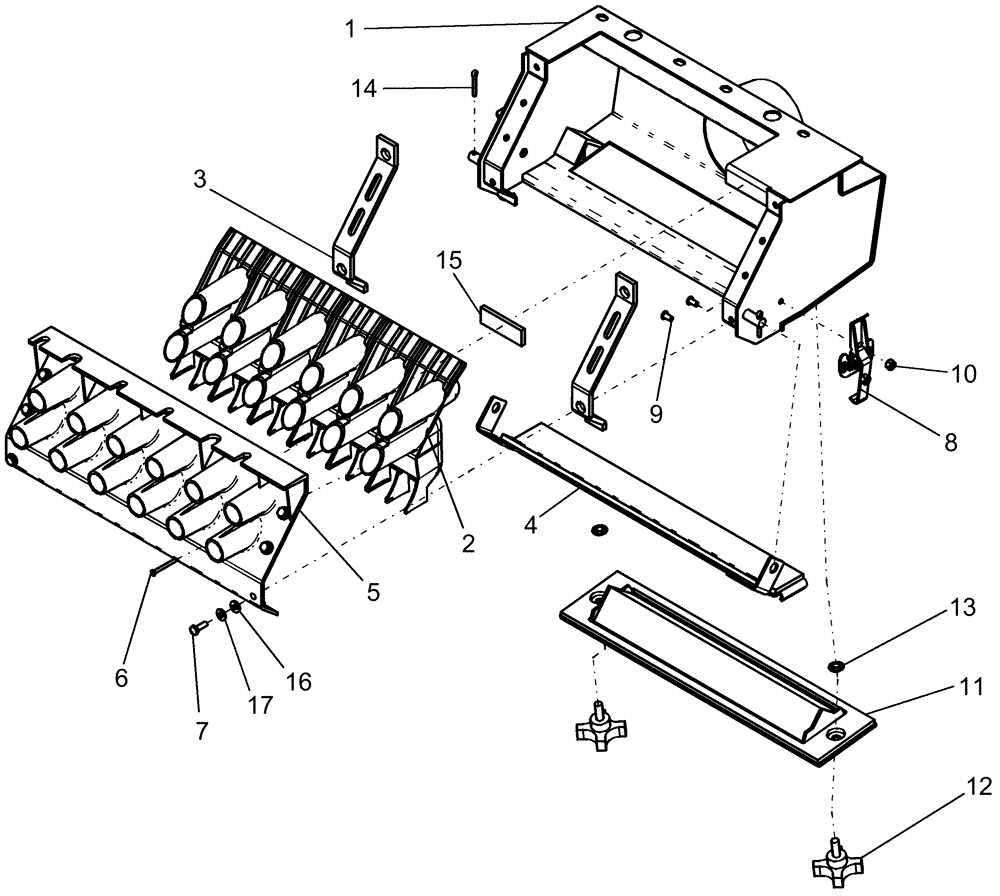

Запчасти Case IH 1240 (80.150.15[01]) - BULK FILL - SEED BOX 87444630, 24 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING

0

87444630

DISTRIBUTOR

bulk seed - 12 port

1шт.

1

87444564

BOX

distributor, seed assembly

1шт.

2

87444532

MANIFOLD

segmented inductor

6шт.

3

407094A2

GASKET

neoprene front black 1 1/4" w x 9 5/8" l x 1/4"

2шт.

4

NSS

NOT SOLD SEPARAT

BOTTOM W/ GASKET -12P

1шт.

4

86987809

PLATE

bottom cover - 12P

1шт.

4

87444120

GASKET

bottom cover - 12 port

1шт.

5

87502066

MANIFOLD

front cover - 12 port

1шт.

6

87017483

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

6шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

8

230311A1

CLAMP

hopper assembly

2шт.

9

88769

HEX SOC SCREW,BTN HD, 1/4" - 20 x 1/2"

4шт.

10

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

11

NSS

NOT SOLD SEPARAT

W/ GASKET 12 PORT BOX

1шт.

11

87444069

SEAL

access hatch 12 port, Years: -01-AUG-08

1шт.

11

86988919

PANEL

access 12 port box

1шт.

11

87494218

GASKET

12 port hatch, Start Year: 01-AUG-08

1шт.

12

87446077

KNOB

3/8"-16 x 1" stud

2шт.

13

87446196

RETAINER

nut, push-on 3/8"

2шт.

14

394818

COTTER PIN,M5 x 25

2шт.

15

87502068

GASKET

neoprene black 1 7/32" wide x 3" long x 1/4" thk

1шт.

16

21676

RUBBER WASHER

1/4"id 5/8" 7/16"tk

8шт.

17

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.
