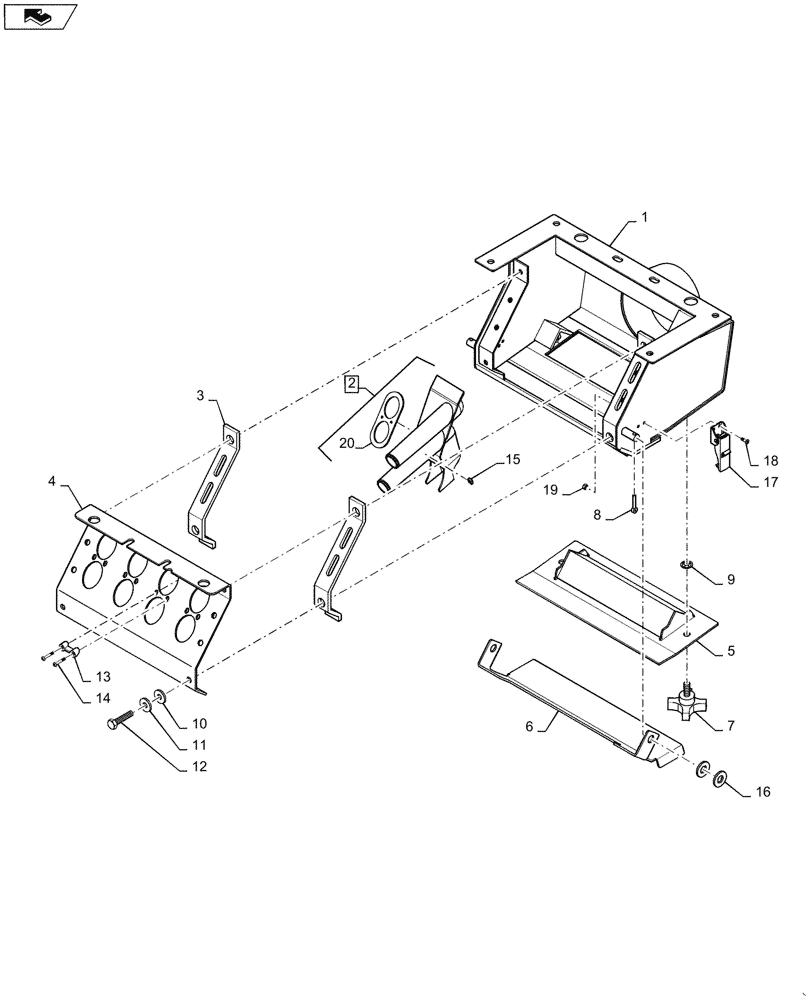

Запчасти Case IH 1240 (80.150.14[03]) - BULK FILL - SEED BOX 12 ROW AND 16 ROW, MODEL YEAR 2012 (80) - CROP STORAGE/UNLOADING

84365112

DISTRIBUTOR

Assembly, Incl. 1 - 19

1шт.

1

84365131

HOUSING

8 Port Distributor

1шт.

2

87472417

DISTRIBUTOR

Segmented

4шт.

3

407094A2

GASKET

Front

2шт.

4

84310756

COVER

8 Port Inductor Box

1шт.

5

87472750

HATCH

8 Port

1шт.

6

84365136

COVER

8 Port Distributor

1шт.

7

87446077

KNOB

3/8-16 x 1" Stud

2шт.

8

87397

COTTER PIN,3/16" OD x 1" L

2шт.

9

87446196

RETAINER

Push-On, 3/8" Bolt Retaining

2шт.

10

21676

RUBBER WASHER

8шт.

11

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.

12

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

13

84300549

WEDGE

4шт.

14

86511915

SCREW,Pan, #8 - 32 x 1"

8шт.

15

84151584

SQUARE NUT

8шт.

16

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

17

84388664

LATCH

Under-Center Double Lock

2шт.

18

87302072

HEX SOC SCREW,Btn Hd, #8 - 32 x 1/2"

4шт.

19

87319809

LOCK NUT,M8 x 32, GB

4шт.

20

87498551

GASKET

Distributor Seal

1шт.
