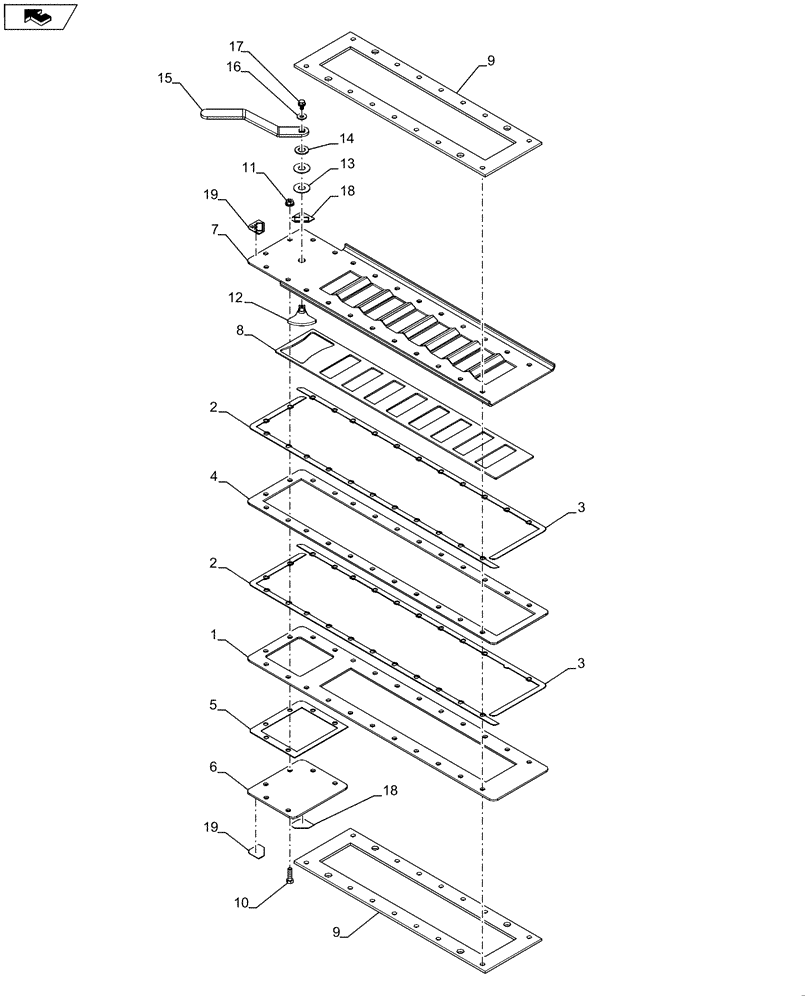

Запчасти Case IH 1240 (80.150.13[02]) - BULK FILL - GRATE SHUT-OFF ASSEMBLY, MODEL YEAR 2012 (80) - CROP STORAGE/UNLOADING

1

84300544

SUPPORT

Plate Shut Off, Small

1шт.

2

84309534

GASKET

Half Grate Assembly, Small 1/2

2шт.

3

84349673

GASKET

Half Grate Assembly, Small 2/2

2шт.

4

84300542

GUIDE

Plate Shut Off, Small

1шт.

5

84349674

GASKET

Cam Assembly Access Cover

1шт.

6

84349671

COVER PLATE

Cam Assembly Access

1шт.

7

84300533

GRATE

Plate Shut Off Assembly, Small

1шт.

8

84300537

SLIDE

Plate Shut Off, Small

1шт.

9

87445220

GASKET

Seed Grate Bottom, Small

2шт.

10

84499054

HEX SOC SCREW

6шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12

84309537

CAMSHAFT

Slide Plate Control

1шт.

13

84302584

SEALING WASHER

Camshaft

2шт.

14

84156169

WASHER,0.66" ID x 1.25" OD x 0.1" Thk

1шт.

15

84300545

HANDLE

Camshaft

1шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

17

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

18

84329865

DECAL

Seed Gate Close

2шт.

19

84329863

DECAL

Seed Gate Open

2шт.
