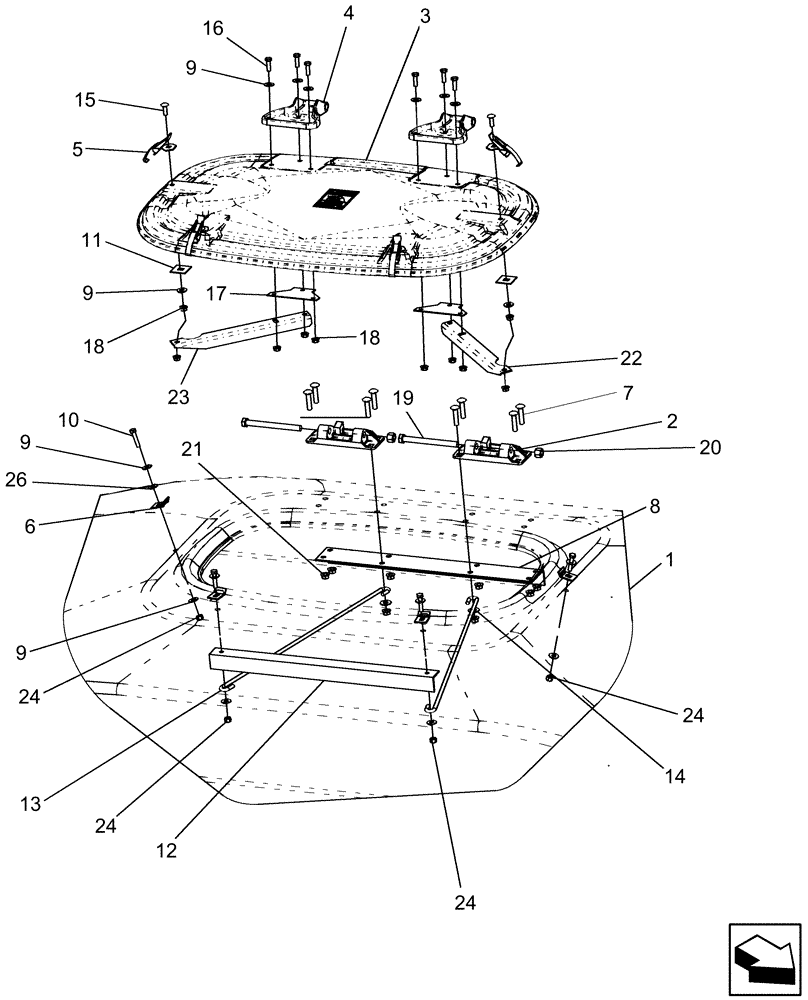

Запчасти Case IH 1240 (80.150.12) - BULK FILL - TANKS (80) - CROP STORAGE/UNLOADING

1

87454329

GRAIN TANK

40bu bulk LH

1шт.

Shown

1шт.

1

87454328

GRAIN TANK

40bu bulk RH

1шт.

Not Shown

1шт.

1

87454327

GRAIN TANK

30bu bulk LH

1шт.

Not Shown

1шт.

1

87454326

GRAIN TANK

30bu bulk RH

1шт.

Not Shown

1шт.

2

140537C1

PIVOT

lid

2шт.

3

452021A1

LID

seed tank

1шт.

Complete With Seal and Decal

1шт.

3

140860C1

SEAL

bulk fill hopper lid

1шт.

3

416614A1

WARNING DECAL

Chemical Burn

1шт.

4

140859C1

HINGE

hopper lid

2шт.

5

140861C1

LATCH

lid, Model Year 2011 And Prior

4шт.

5

84423977

LATCH

Undercenter Double Lock, Model Year 2012

4шт.

6

548622R1

CLIP

locking, Model Year 2011 And Prior

4шт.

6

84423980

CATCH

Lid, Model Year 2012

4шт.

7

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

8шт.

8

448596A1

BRACKET

tank back

1шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

18шт.

10

2126

BOLT

4шт.

11

1254517C1

STRIP

lid latch pad

4шт.

12

448595A1

BRACKET

angle front tank

1шт.

13

149297C1

BAR

rod 5/16" od bent safety

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

15

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

17

87422281

BAR

strip reinforcing

2шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

19

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.

20

9636698

NUT,1/2"-13, GB

2шт.

21

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

22

87415636

SUPPORT

hopper lid RH

1шт.

23

87415638

SUPPORT

hopper lid LH

1шт.

24

86050277

NUT,5/16"-18, GB

4шт.

25

404197A1

SENSOR

bin level

1шт.

Not Shown

1шт.

26

87439523

RUBBER WASHER

neoprene rubber 7.9 mm id x 22.3 mm od x 1.6 mm thick

6шт.
