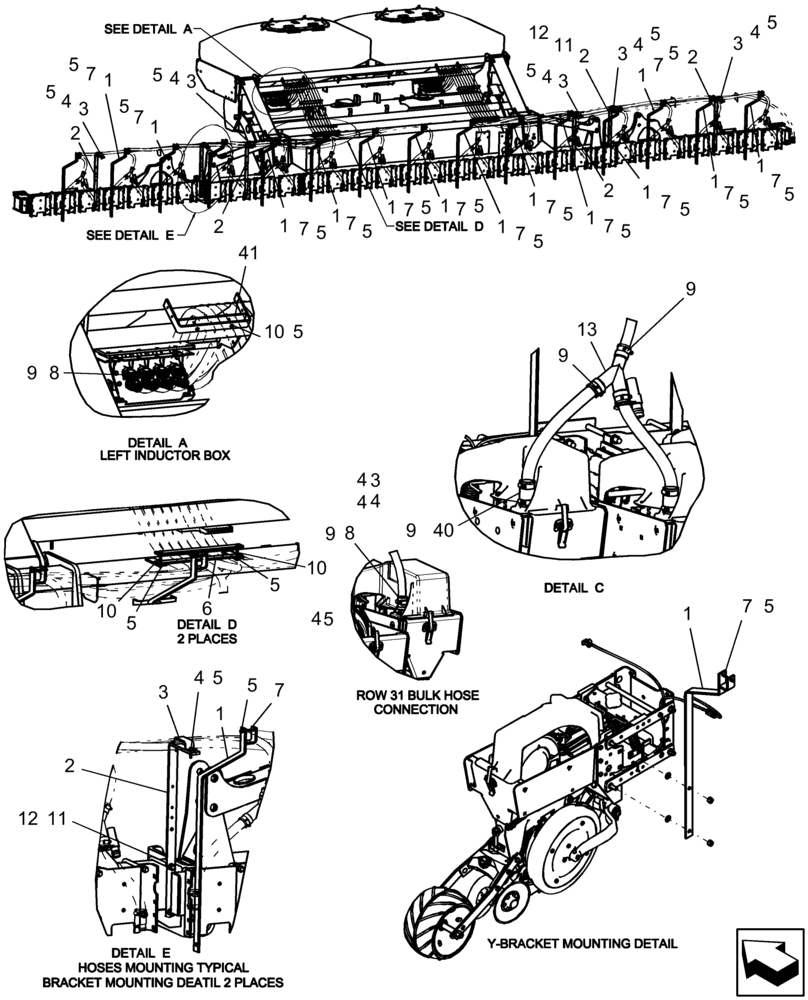

Запчасти Case IH 1240 (80.150.10) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 16/31 ROW (80) - CROP STORAGE/UNLOADING

1

451528A1

BRACKET

Y splitter

15шт.

2

427745A2

BAR

vacuum support

6шт.

3

87446019

BRACKET

hose support

9шт.

4

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

5

86625061

NUT,1/4"-20, GB

35шт.

6

444174A1

SUPPORT TUBE

tube support

4шт.

7

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

15шт.

8

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

17шт.

9

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

139шт.

10

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

8шт.

11

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

13

87446065

TUBE,26.9-31.8 mm ID x 36.9 - 41.8 mm OD x 191 mm L

y-splitter 1"id to 1 1/4"id

15шт.

14

87414914

HOSE,25.40 mm ID x 773.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

15

87414911

HOSE,25.40 mm ID x 6477.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

16

87414915

HOSE,25.40 mm ID x 1061.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

17

87414902

HOSE,25.40 mm ID x 534.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

18

87414918

HOSE,25.40 mm ID x 520.00 mm

seed 1" x 4369 mm

1шт.

Cut from bulk hose 87446431

1шт.

19

87414905

HOSE,25.40 mm ID x 593.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

20

87414905

HOSE,25.40 mm ID x 593.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

21

87414901

HOSE,25.40 mm ID x 616.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

22

87414905

HOSE,25.40 mm ID x 593.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

23

87414905

HOSE,25.40 mm ID x 593.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

24

87414918

HOSE,25.40 mm ID x 520.00 mm

seed 1" x 4369 mm

1шт.

Cut from bulk hose 87446431

1шт.

25

87414902

HOSE,25.40 mm ID x 534.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

26

87414909

HOSE,25.40 mm ID x 6020.00 mm

seed 1" x 6020 mm

1шт.

Cut from bulk hose 87446431

1шт.

27

87414916

HOSE,25.40 mm ID x 1283.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

28

87414913

HOSE,25.40 mm ID x 1457.00 mm

seed 1" x 7366 mm

1шт.

Cut from bulk hose 87446431

1шт.

29

87414912

HOSE,25.40 mm ID x 910.00 mm

Seed

1шт.

Cut from bulk hose 87446431

1шт.

14-29

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

14-29

87483976

HOSE

1" x 100' PVC black spiral

1шт.

30

86991609

HOSE,31.75 mm ID x 457.00 mm

Bulk Fill Seed

15шт.

Cut from bulk hose 412786A1

1шт.

31

86991610

HOSE,31.75 mm ID x 521.00 mm

Bulk Fill Seed

13шт.

Cut from bulk hose 412786A1

1шт.

32

87416889

HOSE

bulk fill seed 1 1/4" id x 660 mm

1шт.

Cut from bulk hose 412786A1

1шт.

33

86991610

HOSE,31.75 mm ID x 521.00 mm

Bulk Fill Seed

1шт.

Cut from bulk hose 412786A1

1шт.

30-33

412786A1

HOSE

1 1/4" pvc clear spiral 1/8" wall must be ordered in multiples of 100

1шт.

30-33

87483977

HOSE

1 1/4" pvc black spiral 1/8" wall must be ordered in multiples of 100

1шт.

34

87430980

PLUG

seed hose

15шт.

35

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

36

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

37

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

38

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

39

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

40

449129A1

COUPLING

seed hose

30шт.

41

440367A1

BAR

seed hoses

2шт.

42

84286644

BUSHING

Spacer, (Not Shown)

10шт.

43

87483976

HOSE

Cut To 890 mm

1шт.

44

84375592

CAP

1шт.

45

84372879

O-RING

1шт.
