Запчасти Case IH 1240 (80.150.09) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 12/23 ROW (80) - CROP STORAGE/UNLOADING

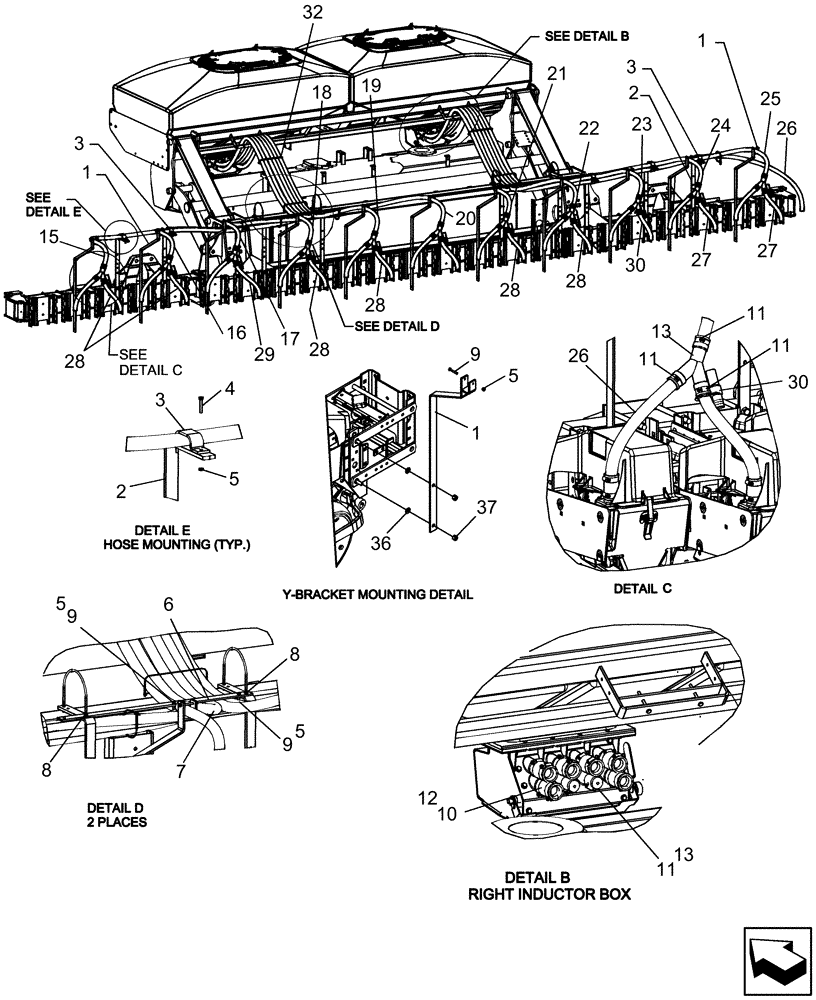

Схема запчастей Case IH 1240 - (80.150.09) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 12/23 ROW (80) - CROP STORAGE/UNLOADING
1
26
28
32
11
8
26
3
11
1
37
2
22
2
13
5
9
28
10
8
29
11
30
21
28
20
4
9
1
17
5
7
3
16
9
3
12
30
24
6
13
5
18
23
27
25
28
5
11
27
36
28
19
15

Артикул

Название

Примечание

Количество

1

451528A1

BRACKET

Y splitter

11шт.

2

427745A2

BAR

vacuum support

6шт.

3

87446019

BRACKET

hose support

7шт.

4

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

5

86625061

NUT,1/4"-20, GB

27шт.

6

444186A1

SUPPORT TUBE

tube support

2шт.

7

444176A1

SUPPORT TUBE

tube support

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

9

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

15шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

13шт.

11

2688

CAP

vinyl 1 3/16" x 1 1/2" black

4шт.

12

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

57шт.

13

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

14

87446065

TUBE,26.9-31.8 mm ID x 36.9 - 41.8 mm OD x 191 mm L

y-splitter 1"id to 1 1/4"id

11шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5715MM

1шт.

Cut from bulk hose 87446431

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5105MM

1шт.

Cut from bulk hose 87446431

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4267MM

1шт.

Cut from bulk hose 87446431

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3327MM

1шт.

Cut from bulk hose 87446431

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3480MM

1шт.

Cut from bulk hose 87446431

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4166MM

1шт.

Cut from bulk hose 87446431

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3200MM

1шт.

Cut from bulk hose 87446431

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5004MM

1шт.

Cut from bulk hose 87446431

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5740MM

1шт.

Cut from bulk hose 87446431

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6020MM

1шт.

Cut from bulk hose 87446431

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, BF SEED 1.25ID X 457MM

11шт.

Cut from bulk hose 412786A1

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE, BF SEED 1.25ID X 521MM

10шт.

Cut from bulk hose 412786A1

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, BF SEED 1.25ID X 584MM

1шт.

Cut from bulk hose 412786A1

1шт.

15 - 29

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

31

87430980

PLUG

seed hose

11шт.

32

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.

36

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

22шт.

37

86992215

LOCK NUT,1/2"-13, GC

22шт.

38

84286644

BUSHING

Spacer, (Not Shown)

10шт.

Выбрано товаров: 46
