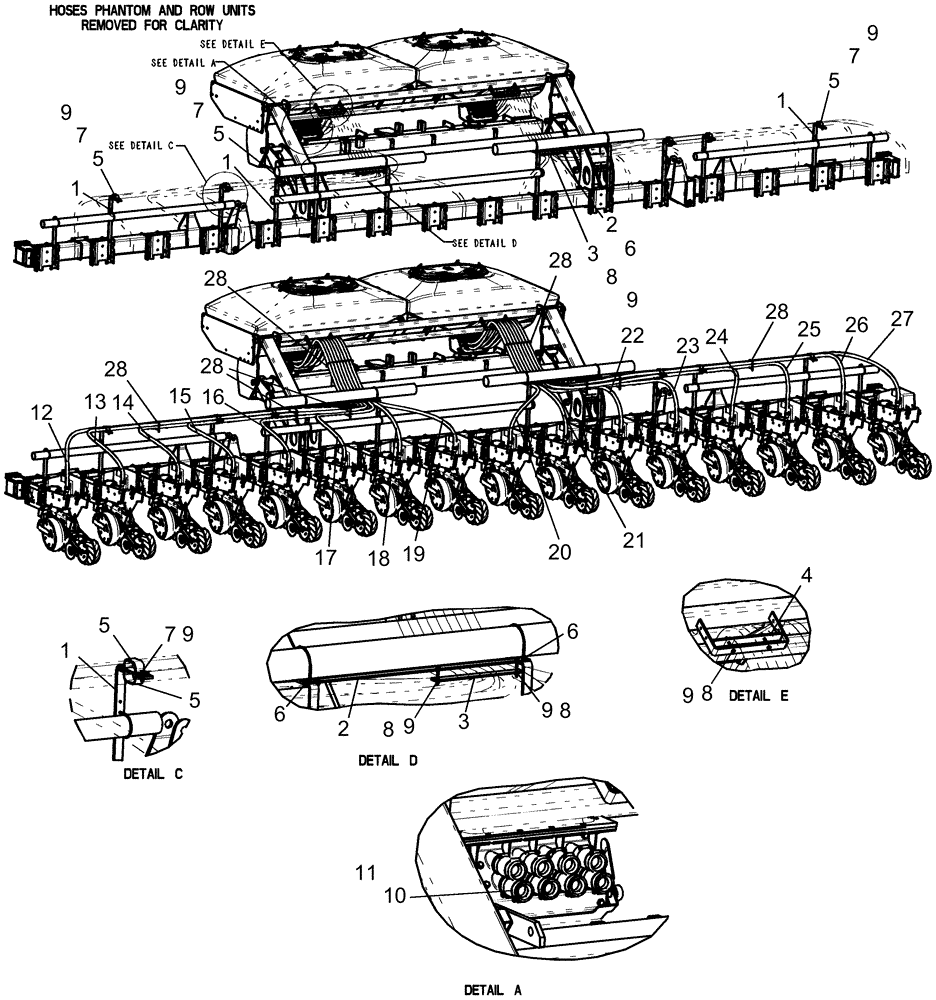

Запчасти Case IH 1240 (80.150.08) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 16 ROW (80) - CROP STORAGE/UNLOADING

1

427745A2

BAR

vacuum support

6шт.

2

444190A1

SUPPORT TUBE

tube support

2шт.

3

444174A1

SUPPORT TUBE

tube support

2шт.

4

440367A1

BAR

seed hoses

2шт.

5

87446019

BRACKET

hose support

10шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

8шт.

9

86625061

NUT,1/4"-20, GB

20шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

17шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

32шт.

12

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7239MM

1шт.

Cut from bulk hose 87446431

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6833MM

1шт.

Cut from bulk hose 87446431

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5994MM

1шт.

Cut from bulk hose 87446431

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5613MM

1шт.

Cut from bulk hose 87446431

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4570MM

1шт.

Cut from bulk hose 87446431

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3734MM

1шт.

Cut from bulk hose 87446431

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3378MM

1шт.

Cut from bulk hose 87446431

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3556MM

1шт.

Cut from bulk hose 87446431

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3734MM

1шт.

Cut from bulk hose 87446431

1шт.

21`

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3378MM

1шт.

Cut from bulk hose 87446431

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3632MM

1шт.

Cut from bulk hose 87446431

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4570MM

1шт.

Cut from bulk hose 87446431

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5613MM

1шт.

Cut from bulk hose 87446431

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5715MM

1шт.

Cut from bulk hose 87446431

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6833MM

1шт.

Cut from bulk hose 87446431

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7078MM

1шт.

Cut from bulk hose 87446431

1шт.

13 - 27

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.
