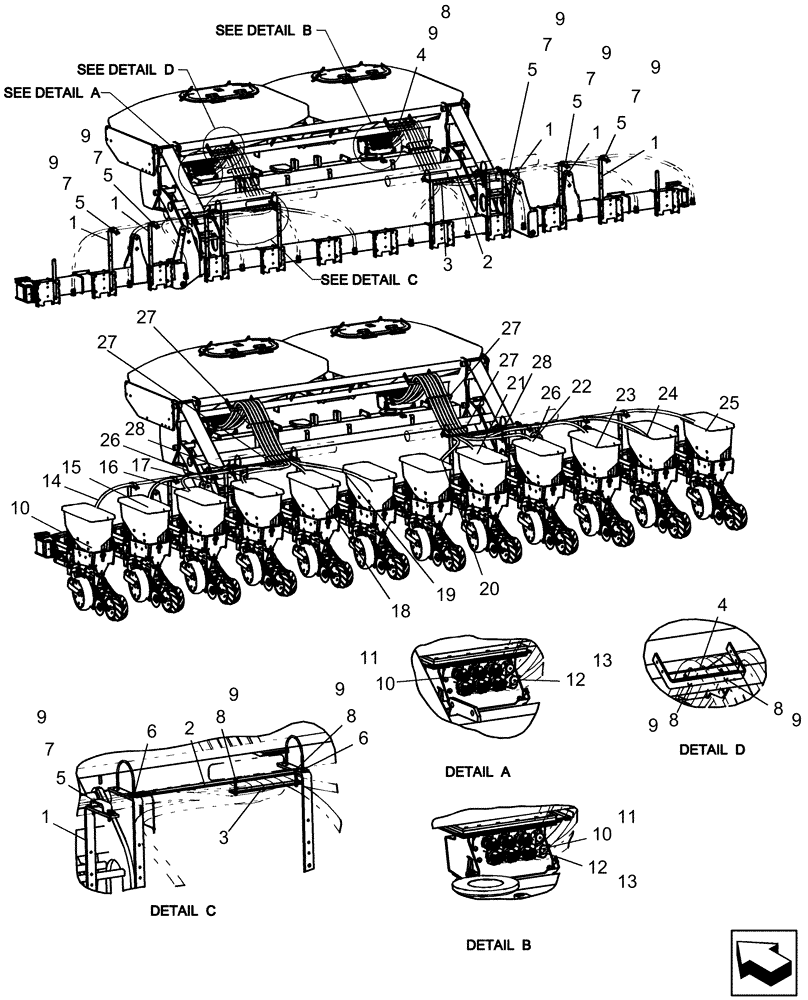

Запчасти Case IH 1240 (80.150.07) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 12 ROW (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
427745A2
BAR
vacuum support
6шт.
2
444186A1
SUPPORT TUBE
tube support
2шт.
3
444176A1
SUPPORT TUBE
tube support
2шт.
4
440367A1
BAR
seed hoses
2шт.
5
87446019
BRACKET
hose support
6шт.
6
7770
NUT,Hex, 1/4 - 20, Cl 5
4шт.
7
280112
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
12шт.
8
87845
BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5
8шт.
9
86625061
NUT,1/4"-20, GB
20шт.
10
87445891
ADAPTER
seed hose 1 1/4" - 1 1/2" od
24шт.
11
513309
HOSE CLAMP,1-1/16” - 2”, Worm Gear
48шт.
12
2688
CAP
vinyl 1 3/16" x 1 1/2" black
4шт.
14
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 5994 mm long
1шт.
Cut from bulk hose 87446431
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 5450 mm long
1шт.
Cut from bulk hose 87446431
1шт.
16
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 4369 mm long
1шт.
Cut from bulk hose 87446431
1шт.
17
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3734 mm long
1шт.
Cut from bulk hose 87446431
1шт.
18
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3350 mm long
1шт.
Cut from bulk hose 87446431
1шт.
19
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3556 mm long
1шт.
Cut from bulk hose 87446431
1шт.
20
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3556 mm long
1шт.
Cut from bulk hose 87446431
1шт.
21
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3350 mm long
1шт.
Cut from bulk hose 87446431
1шт.
22
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 3632 mm long
1шт.
Cut from bulk hose 87446431
1шт.
23
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 4369 mm long
1шт.
Cut from bulk hose 87446431
1шт.
24
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 5450 mm long
1шт.
Cut from bulk hose 87446431
1шт.
25
NSS
NOT SOLD SEPARAT
HOSE, PVC clear spiral
1шт.
Cut to 5994 mm long
1шт.
Cut from bulk hose 87446431
1шт.
Выбрано товаров: 52
