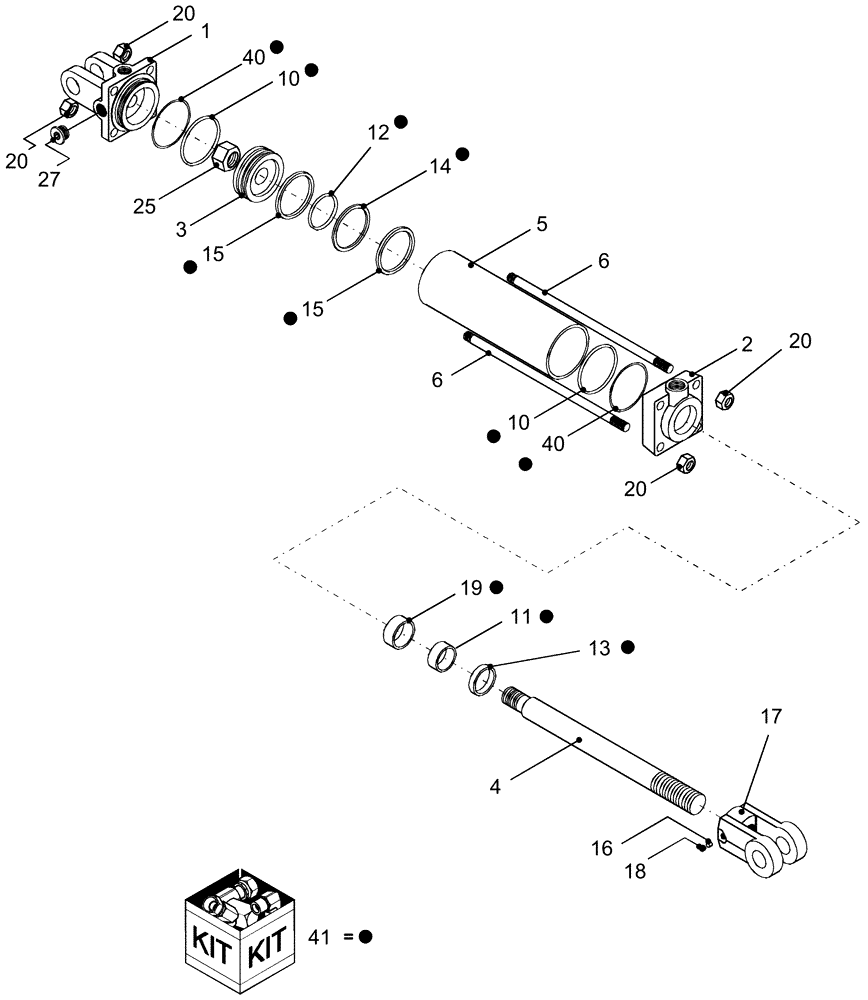

Запчасти Case IH 1240 (35.116.03) - HYDRAULIC CYLINDER - 86991780 (35) - HYDRAULIC SYSTEMS

0

86991780

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 457.2mm Stroke

4" x 18" 3000 PSI no pins

1шт.

1

87409439

HEAD

cylinder base 4" bore

1шт.

2

87409410

HEAD

cylinder front 4" bore x 1 3/4" rod

1шт.

3

87409466

PISTON

cylinder, 4" bore Monarch #494730

1шт.

4

87409457

PISTON ROD

1 3/4" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409489

BOLT

hydraulic cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87405835

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87405835

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405835

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87405835

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87405835

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405835

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

Included in repair kit 87405835

1шт.

17

87409389

CLEVIS,1 -1/2" - 12

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87405835

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87405835

1шт.

41

87405835

SEAL KIT

hyd cyl service 4" Monarch 1 3/4" rod

1шт.
