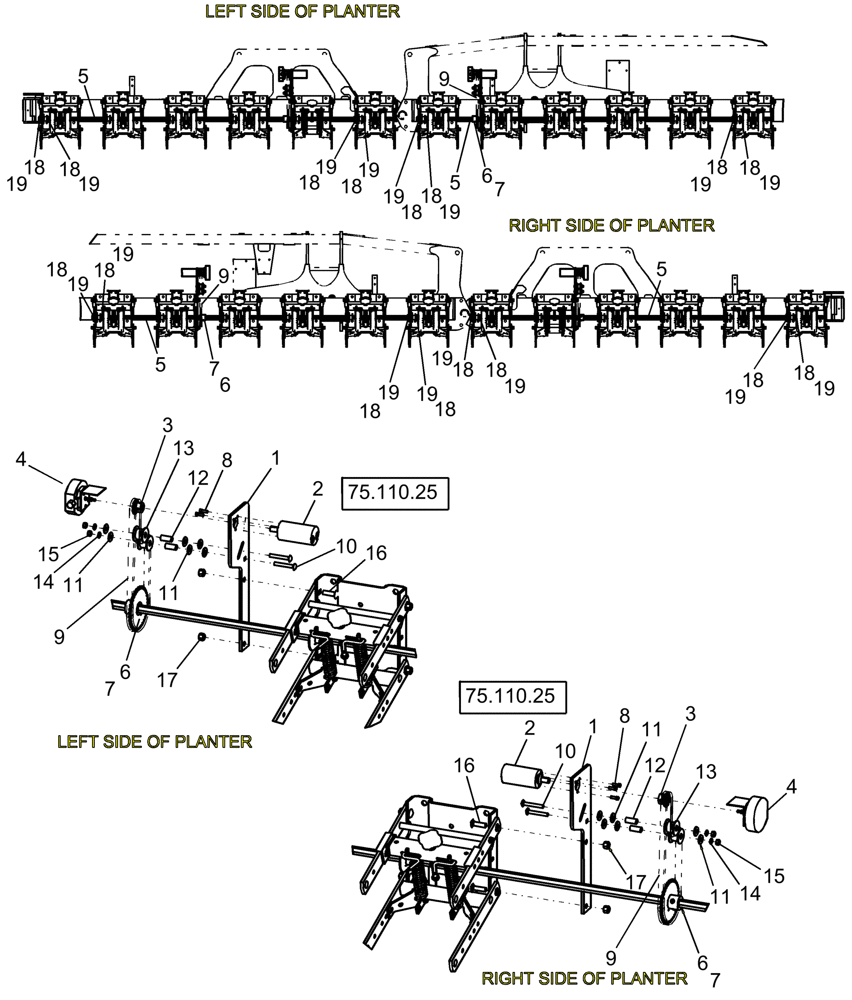

Запчасти Case IH 1240 (75.300.03) - LAYOUT 24 ROW SEED DRIVES (75) - SOIL PREPARATION

1

436716A2

BRACKET

motor

4шт.

2

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

4шт.

293288A1R

REMAN-HYD MOTOR

1240 24 Row Pivot Transport Planter, N.A. Only

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number, For N.A. Only

1шт.

3

232893A1

SPROCKET

40 x 10

4шт.

4

296164A2

SENSOR

application rate

4шт.

5

325590A1

SHAFT

hex 7/8" x 105"

4шт.

6

353037A1

SPROCKET

34 tooth

4шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

8

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

12шт.

9

84387534

CHAIN

roller, 40-1, 84 links with 1 connector link

4шт.

10

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

8шт.

11

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

24шт.

12

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

8шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

idler

8шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

15

9628503

NUT,3/8"-16, G5

8шт.

16

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

8шт.

17

86992215

LOCK NUT,1/2"-13, GC

8шт.

18

22224

COLLAR

lock, 7/8" id

8шт.

18

102724A2

BALL BEARING,22.6mm ID

Right Side Of Planter

4шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bearing

8шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

Bearing

8шт.

19

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

16шт.
