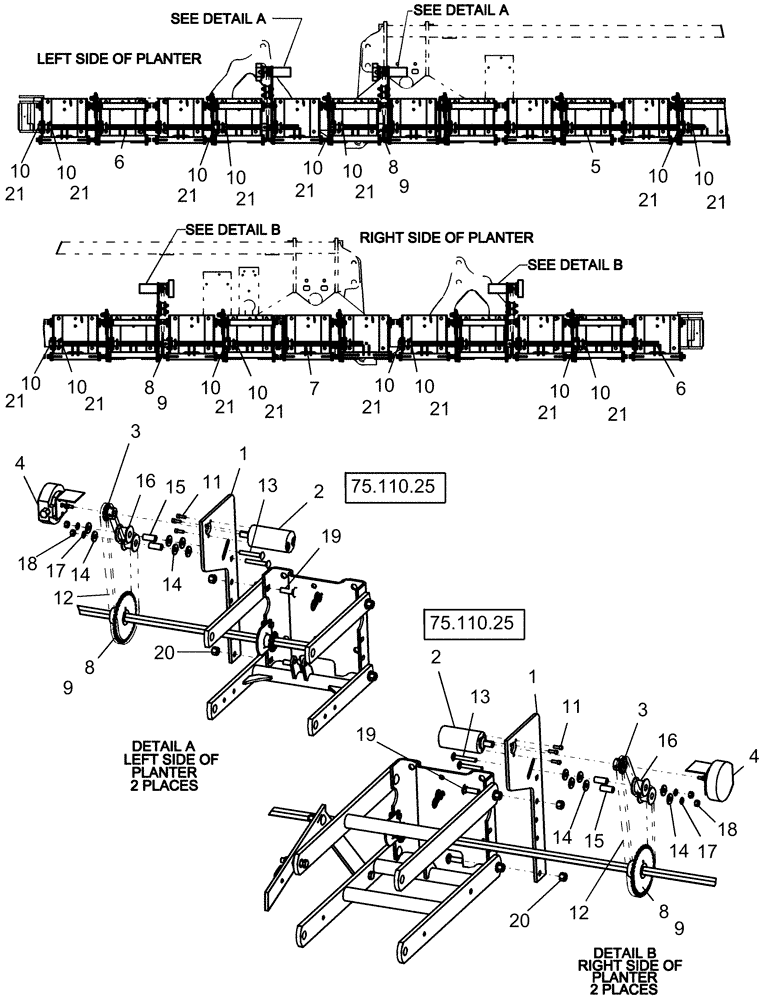

Запчасти Case IH 1240 (75.300.02) - LAYOUT 12/23 ROW & 16/31 ROW SEED DRIVES (75) - SOIL PREPARATION

1

87419189

BRACKET

seed drive motor

4шт.

2

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

4шт.

2

293288A1R

REMAN-HYD MOTOR

1240 12/23 & 16/31 Row Pivot Transport Planter

4шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

232893A1

SPROCKET

40 x 10

4шт.

4

296164A2

SENSOR

application rate

4шт.

5

176895A1

BAR

shaft hex 7/8" x 126 13/32"

1шт.

16/31 row planter

1шт.

5

178497A1

SHAFT

7/8" hex x 2450 mm long

1шт.

12/23 row planter

1шт.

6

178497A1

SHAFT

7/8" hex x 2450 mm long

2шт.

16/31 row planter

1шт.

6

117008A1

SHAFT

hex 7/8" x 1700 mm

2шт.

12/23 row planter

1шт.

7

87428982

SHAFT

hex 7/8" x 2810 mm

1шт.

16/31 row planter

1шт.

7

87428981

SHAFT

hex 7/8" x 2050 mm

1шт.

12/23 row planter

1шт.

8

353037A1

SPROCKET

34 tooth

4шт.

9

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

10

22224

COLLAR

lock, 7/8" id

8шт.

11

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

12шт.

12

436984A1

CHAIN (AG)

roller, 40-1, 84 links with 1 connector link

4шт.

Use 83 links from 1790D bulk chain, plus (1) 25195 connecting link

1шт.

12

1790D

CHAIN (AG)

#40 bulk, 10' roll

1шт.

12

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

13

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

8шт.

14

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

24шт.

15

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

8шт.

16

1277726C1

ROLLER,48mm OD x 34mm L

idler

8шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

18

9628503

NUT,3/8"-16, G5

8шт.

19

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

8шт.

20

86992215

LOCK NUT,1/2"-13, GC

8шт.

21

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

16шт.
