(35.116.02) - HYDRAULIC CYLINDER - 86991777

Запчасти Case IH 1240 (35.116.02) - HYDRAULIC CYLINDER - 86991777 (35) - HYDRAULIC SYSTEMS

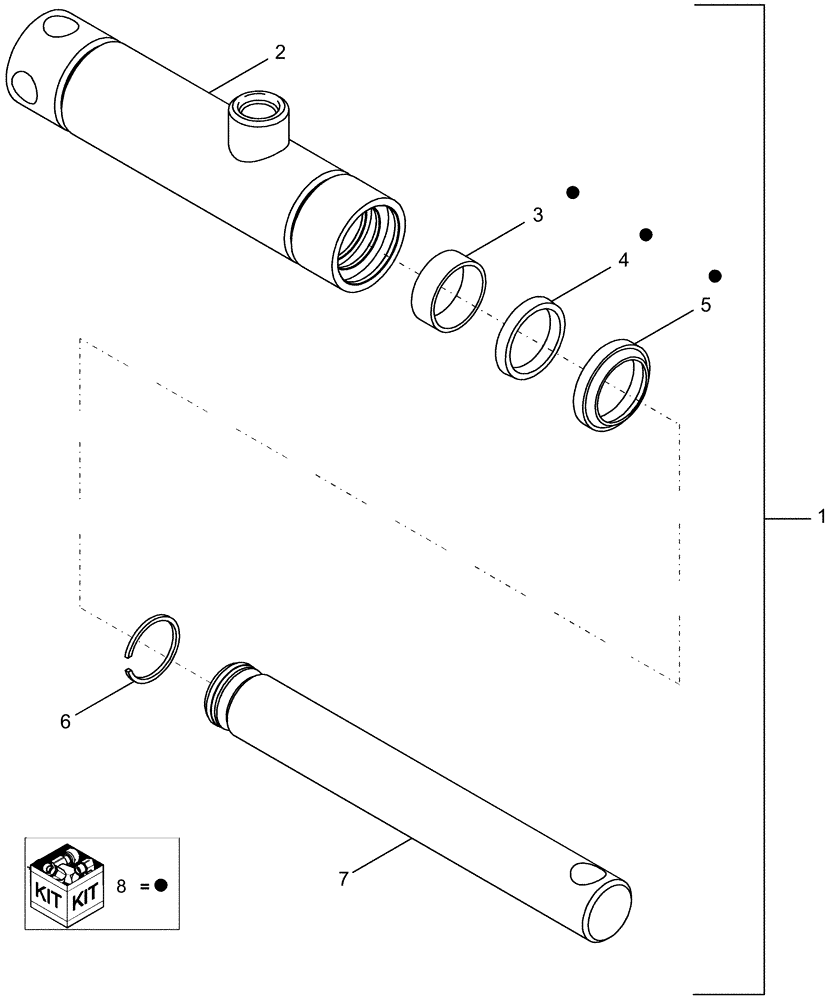

Схема запчастей Case IH 1240 - (35.116.02) - HYDRAULIC CYLINDER - 86991777 (35) - HYDRAULIC SYSTEMS
6
3
5
8
2
1
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE, HYD CYLINDER W/CLEVIS

1шт.

3

NSS

NOT SOLD SEPARAT

NYLON WEAR RING

1шт.

Included in repair kit 87405836

1шт.

4

NSS

NOT SOLD SEPARAT

ROD SEAL

1шт.

Included in repair kit 87405836

1шт.

5

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87405836

1шт.

6

87409510

RING

retaining hydraulic cylinder

1шт.

7

87409507

PISTON ROD

1" Nitrosteel

1шт.

8

87405836

SEAL KIT

hyd cyl service 1 1/4" Monarch 1" rod

1шт.
