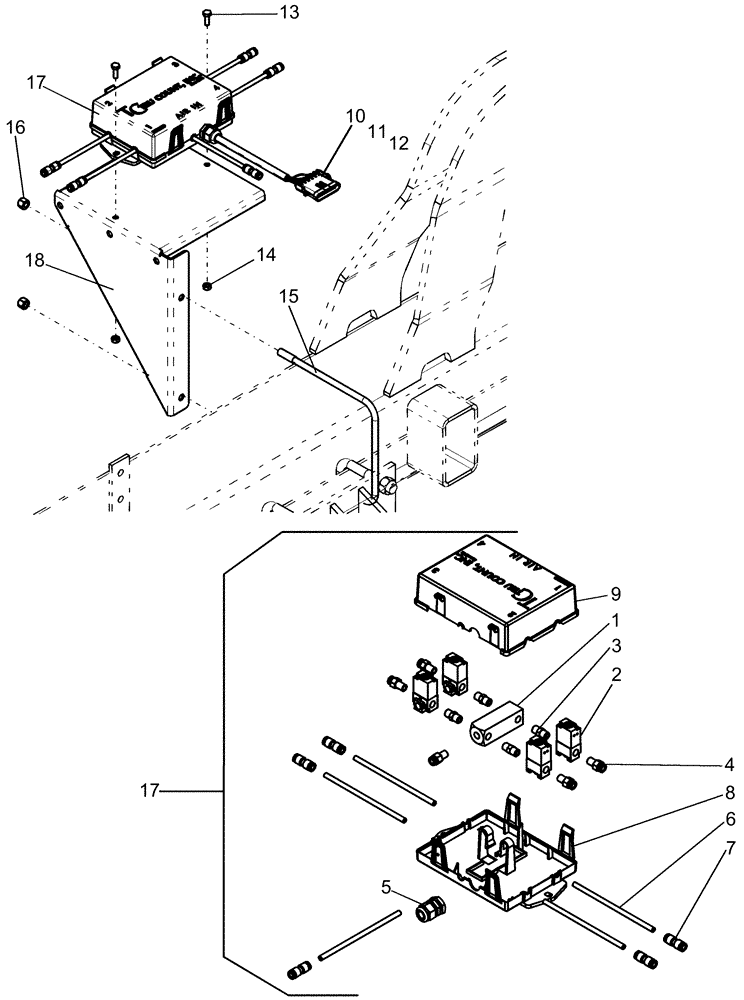

Запчасти Case IH 1240 (75.200.45) - ACCUROW VALVE ASSY, AIR CLUTCH (75) - SOIL PREPARATION

1

84143647

MANIFOLD

air distribution

1шт.

2

84143650

CONTROL VALVE

section

4шт.

3

87014030

FITTING,1/8"-27 NPTF, Brass

4шт.

4

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

5шт.

5

84143654

SLEEVE

strain relief

1шт.

6

84174475

PLASTIC-RUBBER TUBE

1/4"X 6"

5шт.

Cut 165 mm from bulk hose

1шт.

7

84394559

COUPLING

1/4" tube x 1/4" tube

5шт.

8

84143641

HOUSING

valve

1шт.

9

84171935

VALVE COVER

housing

1шт.

10

84171939

WIRE CONNECTOR

splice 3-wire

4шт.

11

84171943

WIRE CONNECTOR

splice 5-wire

1шт.

12

87692859

MULTIPOLE CONNECTOR,Male, 6 Pole

ES-A7380

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

10шт.

15

142372A1

U-BOLT

3/8"-16 x 7 x 8

2шт.

16

87039402

NUT,3/8"-16, GB

12шт.

17

84170217

VALVE

pneumatic clutch

3шт.

17

84170217R

REMAN-HYD VALVE

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, pneumatic clutch (7/08-)

3шт.

17

84170217C

CORE-VALVE HYD

Return Number

3шт.

18

84160542

BRACKET

Valve

3шт.
