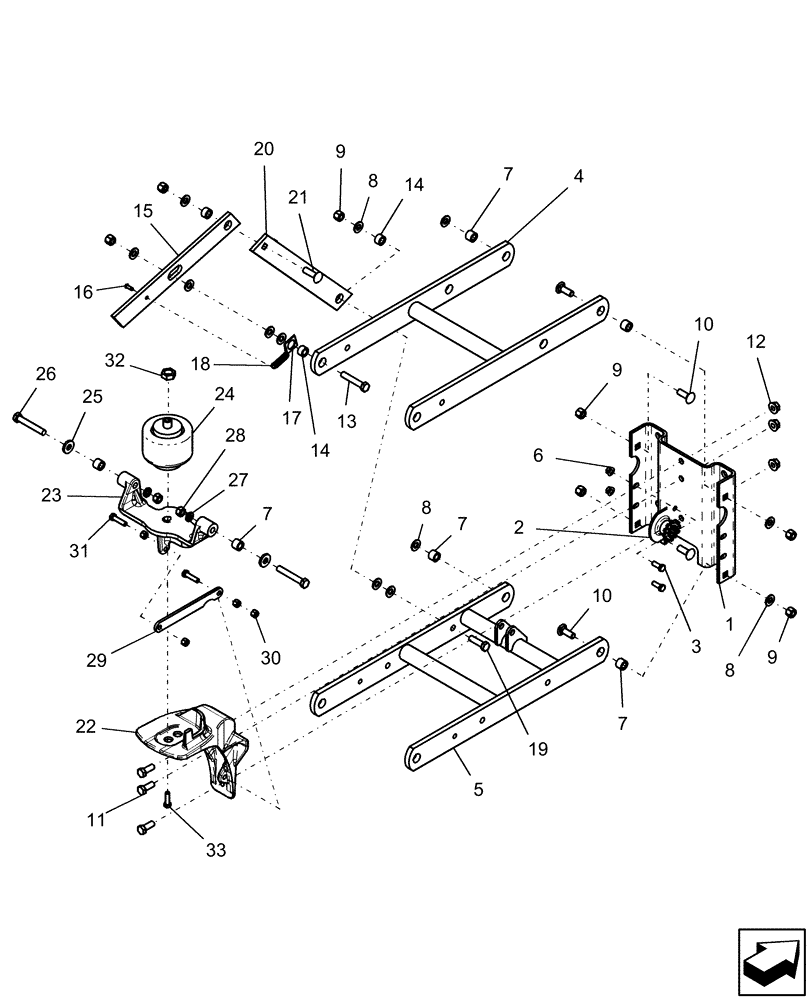

Запчасти Case IH 1240 (75.200.38) - PNEUMATIC DOWN PRESSURE - 24" LINKAGE WITH LOCKUP (75) - SOIL PREPARATION

1

141728C5

BRACKET

channel head

1шт.

2

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

87754229

LINKAGE

24" upper

1шт.

5

87473388

LINKAGE

24" lower

1шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

7

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

6шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

12шт.

9

86992215

LOCK NUT,1/2"-13, GC

7шт.

10

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

12

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

13

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

14

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

3шт.

15

87461745

BAR

secondary lockup

1шт.

16

439-1412

HEADED PIN,1/4" x 3/4"

1шт.

17

87428709

LOCKING TAB

spring

1шт.

18

87426449

COIL SPRING

E 1/16" wr 1/2" d 2" lg

1шт.

19

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

20

87461748

ARM

row unit lockup

1шт.

21

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

22

87752967

BRACKET

upper air spring 20" and 24"

1шт.

23

87739251

BRACKET

lower air spring

1шт.

24

87737172

SPRING

pneumatic 4.6" dia

1шт.

25

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

26

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

9803187

NUT,1/2"-13, G8

2шт.

29

87473330

BRACKET

pneumatic link, 24"

1шт.

30

87039402

NUT,3/8"-16, GB

4шт.

31

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.

33

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

34

84394592

FITTING

pneumatic spring (Not Shown)

1шт.

35

84394580

FITTING

tied to toolbar (Not Shown)

1шт.
